Inti inti NWT
Laras inti BTW
Alat pengeboran berdinding tipis Core Barrel

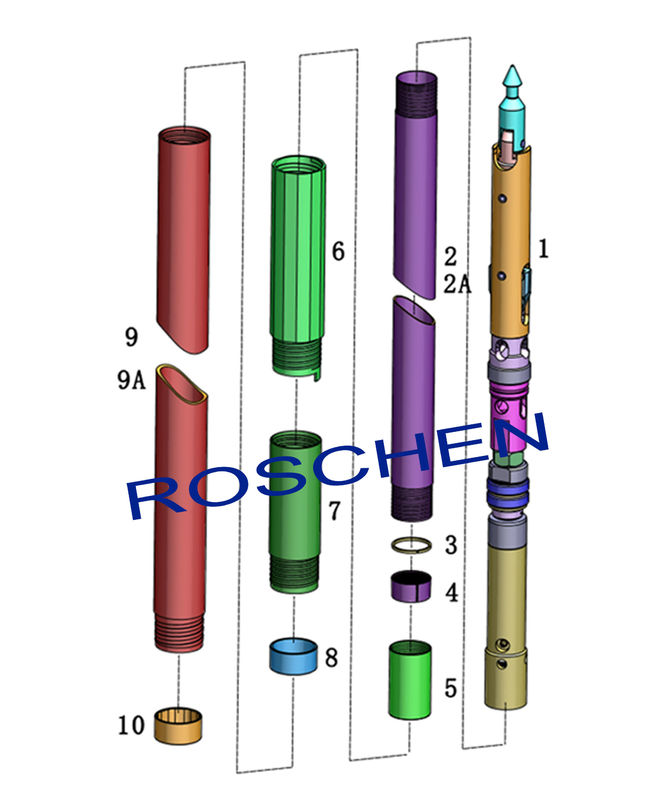

Core Barrel Assembly, pengeboran Core Barrel assembly
ROSCHEN Tumpukan berdinding tipis dari unit alat pengeboran, perakitan laras inti
Tebal inti pengeboran berdinding tipis dengan lubang dinding lubang kecil, putaran halus, kecepatan potong, bisa dengan cepat melewati lapisan kompleks, untuk mengurangi terjadinya lubang di lubang; lubang kontrol presisi miring, mengambil tingkat tinggi inti, Taiwan dan keuntungan lain dari efisiensi tinggi. Dibandingkan dengan alat pengeboran tradisional, diameter diameter yang lebih besar dapat diperoleh selama proses pengeboran dengan diameter lubang yang sama. Khususnya untuk kecepatan tinggi, mesin pengeboran hidrolik umpan rendah dengan bit berlian, pengeboran dalam formasi lengkap, efisiensinya bisa beberapa kali lebih tinggi, bisa digunakan dengan flushing fluid solid state rendah, dan area pemotongannya kecil, batu. Serbuk yang dihasilkan relatif kurang puing, permintaan lumpur juga berkurang, penghematan maksimal biaya lumpur.
| Q Series Wireline Core Barrel System Sizes | ||
| UKURAN | CORE Ø | HOLE Ø |
| AQTK | 35,5 mm (1-3 / 8 inci) | 48 mm (1-7 / 8 inci) |
| BQ | 36,4 mm (1-7 / 16 in) | 60 mm (2-3 / 8 inci) |
| BQTK | 40,7 mm (1-5 / 8 inci) | 60 mm (2-3 / 8 inci) |
| NQ | 47,6 mm (1-7 / 8 inci) | 75,7 mm (3 inci) |
| NQTK (NQ2 ") | 50,6 mm (2 inci) | 75,7 mm (3 inci) |
| NQ3 | 45 mm (1-3 / 8 in) | 75,7 mm (3 inci) |
| HQ | 63,5 mm (2-1 / 2 inci) | 96 mm (3-3 / 8 inci) |
| HQ3 | 61,1 mm (2-3 / 8 inci) | 96 mm (3-3 / 8 inci) |
| PQ | 85 mm (3-3 / 8 in) | 122,6 mm (4-7 / 8 inci) |
| PQ3 | 83 mm (3-1 / 4 in) | 122,6 mm (4-7 / 8 inci) |
| Inti bor inti berlian dan spesifikasi inti non-inti berlian Spesifikasi | |
| A-Gauge Core Bits: | A, A-RSG, AWG (AX), AWM, AWT, LTK48 |
| Bit B-Gauge Bits: | B, B-RSG, B-2.400, B3, BWG (BX), BWM, BWT, LTK60, TBW |
| N-Gauge Core Bits: | N, NMLC, NWG (NX), NWM, NWT, TNW |
| H-Gauge Core Bits: | N, HMLC, HWF-Panjang, HWF-Pendek, HWG (HX), HWT |
| P-Gauge Core Bits: | P, P3, PWF-Panjang, PWF-Pendek |
| S-Gauge Core Bits: | SWF-Long, SWF-Short |
| U-Gauge Core Bits: | UWF-Long, UWF-Pendek |
| Z- Gauge Core Bits: | ZWF-Panjang, ZWF-Pendek |
| T, TT, T2 & TB Seri Metrik Core Bits: | Korona T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76, koreng corat, T2-86, T2-86, T2-101, T2-101 |
| T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146 |
| Q Series: | AQ, BQ, NQ, HQ, PQ / AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT |
| Seri T2: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| Seri T6: | T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101 |
| Seri T: | T36, T46, T56, T66, T76, T86 |
| Z Seri: | Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146 |
| B Seri: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| Seri WF: | HWF, PWF, SWF, UWF, ZWF |
| Seri WT: | RWT, EWT, AWT, BWT, NWT, HWT |
| Seri WM: | EWM, AWM, BWM, NWM |
| Seri WG: | EWG, AWG, BWG, NWG, HWG |
| Lainnya: | NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56 , TS116, CHD101. |
| Standar yang disesuaikan | CDDA, DCAMA, Crealius, dan ukuran ISO. |
Kata kunci:
Inti barel
Craelius Core Barrel
Longyear Core Barrel
Boart Longyear Core Barrel
Secoroc Core Barrel
Atlas Copco Core Barrel
Wireline Core Barrel
AQTK Core Barrel
BQ Core Barrel
NQ Core Barrel
HQ Core Barrel
PQ Core Barrel
Inti inti NMLC
HMLC Core Barrel
NWG Core Barrel
HWG Core Barrel
AQWL Core Barrel
BQWL Core Barrel
NQWL Core Barrel
HQWL Core Barrel
PQWL Core Barrel
SQWL Core Barrel
Double Tube Core Barrel
Metrik Core Barrel
T2-66 Core Barrel
T2-76 Core Barrel
T2-86 Core Barrel
T2-101 Core Barrel
T6-76 Core Barrel
T6-86 Core Barrel
T6-101 Core Barrel
T6-116 Core Barrel
T6-146 Core Barrel
WT SERIES CORE BARRELS:
BWT SERIES CORE BARRELS
NWT SERIES CORE BARRELS
HWT SERIES CORE BARRELS
PWT SERIES CORE BARRELS
SERIES JENIS JENIS WM:
AXM / AWM SERIES CORE BARRELS
AXM SERIES CORE BARRELS
AWM SERIES CORE BARRELS
BWM SERIES CORE BARRELS
NWM SERIES CORE BARRELS
HWM SERIES CORE BARRELS
WG SERIES CORE BARRELS:
BWG SERIES CORE BARRELS
NWG SERIES CORE BARRELS
HWG SERIES CORE BARRELS
WF SERIES CORE BARRELS:
NWF SERIES CORE BARRELS
HWF SERIES CORE BARRELS
BWL Core Barrel
NWL Core Barrel
HWL Core Barrel
PWL Core Barrel
barel inti untuk penggelaran tambang dan pengeboran geologi
Triefus Triple Tube Core barel
TABUNG BATUBARA KONVENSIONAL BATUBARA
Seri TT Core Core
T2 Series Core Barrels
Seri T6 Core Core
Seri T6 Core Core
WF / WG Series Core Barrels
TABUNG BATUBARA BATUBARA KONVENSIONAL
WIRELINE DOUBLE TUBE CORE BARRELS "W / L"
WIRELINE TRIPLE TUBE CORE BARRELS "W / L3"
