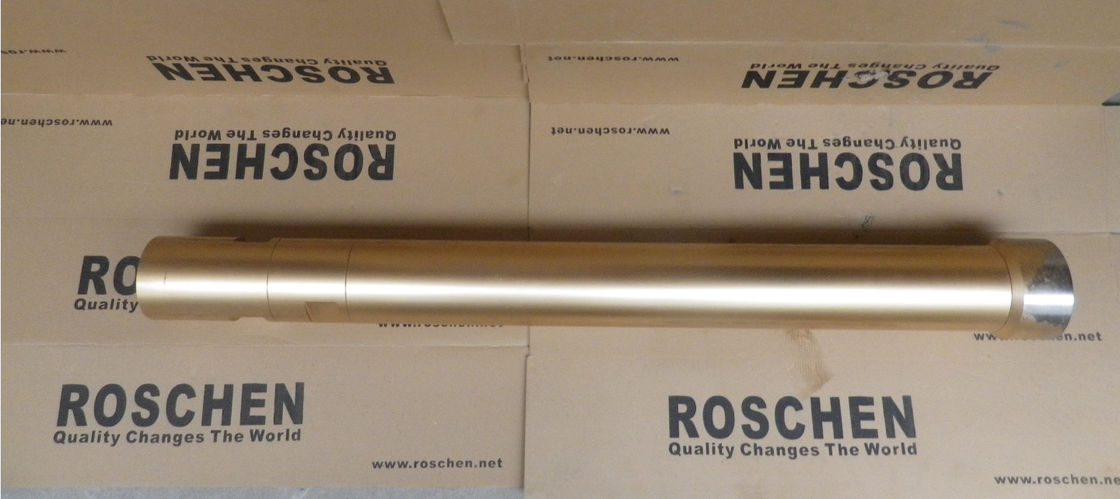

RC50 Hammer button Bits 5 3/8 "Untuk Pengeboran Sirkulasi Terbalik
Bits Tombol Sirkulasi Terbalik RC Bits 5 3/8 "untuk Pengeboran RC
Reverse Sirkulasi Bits
Bit kami untuk pengeboran Reverse Circulation (RC) diproduksi sesuai dengan standar kontrol kualitas tertinggi.Bit cekung kami tersedia dengan tombol Trubbnos yang dipatenkan untuk masa pakai yang lebih lama dan tingkat penetrasi yang ditingkatkan (ROP) serta kualitas sampel yang ditingkatkan.Mata bor RC kami juga terbuat dari tungsten karbida kelas premium.
Pilih dari berbagai bit, betis, dan tombol tergantung kebutuhan Anda.
1. Dua bentuk tombol termasuk bulat dan trubbnos
2. Beberapa gaya bit shank yang berbeda untuk dipilih
3. Bit tombol PCD sesuai permintaan
Pilihan bit Anda akan tergantung pada jenis palu RC yang Anda gunakan.
Gunakan RC Configurator kami untuk memastikan Anda mendapatkan produk yang Anda butuhkan.
Kunci yang diperkeras secara presisi memiliki bobot yang lebih ringan dan memfasilitasi panjang shank yang pendek.Desain Shank memberikan rasio bobot Piston-to-Bit tertinggi — memaksimalkan energi bagian depan tombol.Desain dan kontrol saluran aliran udara meminimalkan penyumbatan permukaan Bit dan menghilangkan tekanan yang tidak diinginkan dari formasi di sekitarnya.
Roschen memproduksi berbagai kebutuhan peralatan pengeboran dari solusi kinerja yang luar biasa (setara dengan Atlas Copco COP Gold dan Atlas Copco MISSION series DTH hammer & button bit), hingga solusi ekonomis (setara dengan Atlas Copco DHD dan Atlas Copco SD series DTH hammer & button bit), hingga low solusi pengeboran tekanan udara yang berfungsi (setara dengan palu & bit tombol seri Atlas Copco CIR seri DTH), ke solusi pengeboran lapisan penutup (setara dengan sistem casing Atlas copco Symmetrix dan Odex), ke solusi pengeboran RC (setara dengan Atlas Copco RC45, RC50 dan Atlas Copco RE004 , RE542, RE543, RE054 RC DTH palu & bit tombol).
Spesifikasi ROSCHEN RC Hammers | |||||||||
Ukuran Palu | Palu | Bit Shank | Kode ROSCHEN | Rentang Lubang (mm) | Diameter Eksternal (mm) | Panjang (tanpa bit) mm | Berat (NW) kg | Benang Koneksi | Tekanan Pekerjaan |
3 " | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3 "Remet | 1.0-3.0Mpa |
3 " | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3 "Remet | 1.0-3.0Mpa |
4 1/2 " | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5 "-4" Remet 4 "Metzke | 1.0-3.0Mpa |
4 1/2 " | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5 "-4" Remet 4 "Metzke | 1.0-3.0Mpa |
5 " | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5 "-4" Remet 4 "Metzke | 1.0-3.0Mpa |
5 " | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5 "-4" Remet 4 "Metzke | 1.0-3.0Mpa |
5 " | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5 "-4" Remet 4 "Metzke | 1.0-3.0Mpa |
5 " | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4 "-4.5" Remet 4 "-4.5" Metzke | 1,5-3,5Mpa |
5 1/2 " | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5 "Remet 4.5" Metzke | 1,5-3,5Mpa |
5 1/2 " | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5 "Remet 4.5" Metzke | 1,5-3,5Mpa |
5 3/4 " | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5 "Remet 4.5" Metzke | 1,5-3,5Mpa |
5 3/4 " | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5 "Remet 4.5" Metzke | 1,5-3,5Mpa |
5 " | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5 "-4.5" Remet 3.5 "-4.5" Metzke | 1,5-3,5Mpa |
5 1/2 " | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4 "-4.5" Remet 4 "-4.5" Metzke | 1,5-3,5Mpa |
5 1/2 " | PR52R | PR52 / PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4 "-4.5" Remet 4 "-4.5" Metzke | 1,5-3,5Mpa |
5 1/2 " | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5 "Remet 4.5" Metzke | 1,5-3,5Mpa |
6 " | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5 "Remet 4.5" Metzke | 1,5-3,5Mpa |
6 "~ 6 1/2" | RC62 / RC62R | RC62 / RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | Sesuai permintaan | 1,5-3,5Mpa |
8 " | RC82 / RC82R | RC82 / RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | Sesuai permintaan | 1,5-3,5Mpa |
10 " | RC100 / RC100R | RC100 / RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | Sesuai permintaan | 1,5-3,5Mpa |
Catatan: | |||||||||
Metzke, utas Remet tersedia! | |||||||||
Semua tipe khusus RC Hammer akan tersedia berdasarkan permintaan. |
Spesifikasi ROSCHEN Reverse Circulation Bits | ||||||||
RE531 RC bit | ||||||||
Kode ROSCHEN: ROS RC 30 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
86 | 3 3/8 | 6x12 | 4x12 | 35 | 2 | 84 | 4.2 | RE531-86 |
89 | 3 1/2 | 8x12 | 8x12 | 35 | 2 | 87 | 4.3 | RE531-89 |
95 | 3 3/4 | 8x12 | 8x12 | 35 | 2 | 93 | 4.6 | RE531-95 |
102 | 4 | 8x12 | 8x12 | 35 | 2 | 100 | 4.9 | RE531-102 |
RE004 RC bit | ||||||||
Kode ROSCHEN: ROS RC 40 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
114 | 4 1/2 | 8x14 | 6x14 | 35 | 2 | 112 | 11.5 | RE004-114 |
118 | 4 5/8 | 8x14 | 6x14 | 35 | 2 | 116 | 11.7 | RE004-118 |
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 12 | RE004-121 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 12.4 | RE004-127 |
RE542 | ||||||||
Kode ROSCHEN: ROS RC 50 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 10.6 | RE542-121 |
124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | RE542-124 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11 | RE542-127 |
130 | 5 1/8 | 8x14 | 10x14 | 35 | 2 | 128 | 11.3 | RE542-130 |
RE543 | ||||||||
Kode ROSCHEN: ROS RC 50 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 10.8 | RE543-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 11 | RE543-127 |
130 | 5 1/8 | 8x14 | 10X14 | 35 | 2 | 128 | 11.3 | RE543-130 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 11.8 | RE543-133 |
RE545 | ||||||||
Kode ROSCHEN: ROS RC 50 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 13.3 | RE545-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 13.5 | RE545-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 13.8 | RE545-133 |
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 14.2 | RE545-136 |
Bit PR40 RC | ||||||||
Kode ROSCHEN: ROS RC 50 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 14.3 | PR40-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 14.7 | PR40-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 15.2 | PR40-133 |
138 | 5 4/9 | 8x16 | 6x16 + 3x14 | 35 | 2 | 136 | 15.8 | PR40-138 |
Bit PR52 RC | ||||||||
Kode ROSCHEN: ROS RC 55 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 11.2 | PR52-133 |
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 11.5 | PR52-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 11.9 | PR52-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 12.3 | PR52-143 |
RE547 RC bit | ||||||||
Kode ROSCHEN: ROS RC 55 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 15.1 | RE547-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 15.5 | RE547-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 15.8 | RE547-143 |
146 | 5 3/4 | 8x16 | 6x16 + 3x14 | 35 | 2 | 144 | 16.3 | RE547-146 |
PR54 | ||||||||
Kode ROSCHEN: ROS RC 55 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 18.2 | PR54-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 18.5 | PR54-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 18.8 | PR54-143 |
146 | 5 3/4 | 8x16 | 6x16 + 3x14 | 35 | 2 | 144 | 19.2 | PR54-146 |
Bit MX5456 RC | ||||||||
Kode ROSCHEN: ROS RC 50 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
133 | 5 1/4 | 8x16 | 8x14 | 35 | 2 | 131 | 15.2 | MX5456-133 |
140 | 5 1/4 | 8x16 | 8x14 | 35 | 2 | 138 | 18.5 | MX5456-140 |
146 | 5 3/4 | 8x18 | 8x14 | 35 | 2 | 144 | 19.2 | MX5456-146 |
Catatan: | ||||||||
Metzke, utas Remet tersedia! | ||||||||
Setiap ukuran khusus bit Sirkulasi Balik akan tersedia berdasarkan permintaan. |
