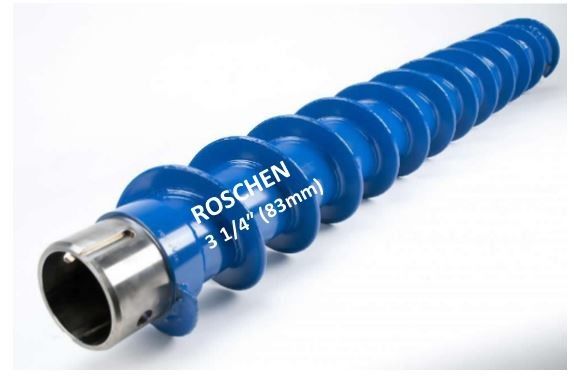

Kunci Ganda Tugas Berat Batang Berongga Auger 3 1/4kan (83mm)
Semua Auger Batang Berongga Kunci Ganda 3 1/4 inci (83mm) menampilkan desain penerbangan berwajah keras terus menerus, tebal 3/8 inci (9,5mm) di tepi luar dengan pitch 6 inci.
Sambungan pahat terbuat dari baja paduan 4142 dan memiliki sambungan baut ganda.
| Keterangan | Lbs. | Kg. | |
| Bagian Auger | |||
| 1 | 3 1/4″ (83mm) DK HD Hollow Stem Auger 3 1/4″ (83mm) ID x 6 5/8″ (168mm) OD x 5′ (1524mm) | 81 | 36.7 |
| 2 | 3 1/4″ (83mm) DK HD Drive Cap dengan 1 5/8″ (41mm) Hex Pin | 22 | 10 |
| 2 | 3 1/4″ (83mm) DK HD Drive Cap dengan 2″ (51mm) Hex Pin | 23 | 10.4 |
| 3 | # 3 Mur & Baut untuk Adaptor Batang ke Tutup | 0.9 | 0.4 |
| 4 | 3 1/8″ (79mm) Konektor Bit Pilot (Kotak AW – Kotak N-Rod 4 Thd) | 11 | 5 |
| 4 | 3 1/8″ (79mm) Konektor Bit Pilot (Kotak AWJ – Kotak N-Rod 4 Thd) | 12 | 5.4 |
| 4 | 3 1/8″ (79mm) Konektor Bit Pilot (Kotak NW – Kotak N-Rod 4 Thd) | 8 | 3.6 |
| 4 | 3 1/8″ (79mm) Konektor Bit Pilot (Kotak NWJ – Kotak N-Rod 4 Thd) | 11 | 5 |
| 5 | Adaptor Batang ke Tutup – Pin AW | 3 | 1.4 |
| 5 | Adaptor Batang ke Tutup – Pin AWJ | 3 | 1.4 |
| 5 | Adaptor Batang ke Tutup – Pin NW | 7 | 3.2 |
| 5 | Adaptor Batang ke Tutup – Pin NWJ | 6 | 2.7 |
| 6 | Batang Bor AW – 5′ (1524mm) | 21 | 9.5 |
| 6 | Batang Bor AWJ – 5′ (1524mm) | 23 | 10.4 |
| 6 | Batang Bor NW – 5′ (1524mm) | 31 | 14.1 |
| 6 | Batang Bor NWJ – 5′ (1524mm) | 35 | 15.9 |
| Suku Cadang Perbaikan Auger | |||
| 1A | 3 1/4″ (83mm) DK HD Pin Tool Joint | 7 | 3.2 |
| 1B | 3 1/4″ (83mm) DK HD Box Tool Joint | 6 | 2.7 |
| 7 | Baut Kunci Auger ALB3 | 0,3 | 0.1 |
| 8 | Kacang Bushing Auger ABN3 | 0,3 | 0.1 |
| 9 | Kunci Drive Auger ADK2 | 0,3 | 0.1 |
| Auger Cutterheads dan Pilot Bits | |||
| 10 | 3 1/4″ (83mm) DK Blade Cutterhead – 7 1/2″ (190mm) OD | 11 | 5 |
| 10 | 3 1/4″ (83mm) DK Spade Cutterhead – 7 1/2″ (190mm) OD | 12 | 5.5 |
| 10 | 3 1/4″ (83mm) DK Blade/Bullet Cutterhead – 7 1/2″ (190mm) OD | 14 | 6.4 |
| 10 | 3 1/4″ (83mm) DK Spade/Bullet Cutterhead – 7 1/2″ (190mm) OD | 9 | 4.1 |
| 10 | 3 1/4″ (83mm) DK Bullet Cutterhead – 7 1/2″ (190mm) OD | 10 | 4,5 |
| 10 | 3 1/4″ (83mm) DK 5-T Cutterhead – 7 1/2″ (190mm) OD | 10 | 4,5 |
| 11 | 3 1/8″ (79mm) Apex Pilot Bit, Pin N-Rod 4-Thrd | 2.5 | 1.3 |
| 11 | 3 1/8″ (79mm) Bullet Pilot Bit, 4-Thrd N-Rod Pin | 5 | 2.3 |
