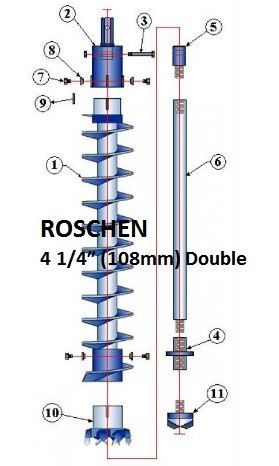

Kunci Ganda Tugas Berat Batang Berongga Auger 4 1/4″ (108mm)
Sambungan pahat tirus tugas berat terbuat dari baja paduan 4142 dan memiliki sambungan baut ganda.
Semua 4 1/4″ (108mm) Double Key Heavy Duty Hollow Stem Augers menampilkan desain penerbangan hardface terus menerus, tebal 3/8″ (9,5mm) di tepi luar dengan pitch 6″.
| Keterangan | Lbs. | Kg. | |
| Bagian Auger | |||
| 1 | 4 1/4″ (108mm) DK HD Hollow Stem Auger 4 1/4″ (108mm) ID x 7 5/8″ (194mm) OD x 5′ (1524mm) | 103 | 48.9 |
| 2 | 4 1/4″ (108mm) DK HD Drive Cap dengan 1 5/8″ (41mm) Hex Pin | 25 | 11.3 |
| 2 | 4 1/4″ (108mm) DK HD Drive Cap dengan 2″ (51mm) Hex Pin | 28 | 12,7 |
| 3 | #4 Mur & Baut untuk Adaptor Batang-ke-Tutup | 0.9 | 0.4 |
| 4 | 4 Konektor Bit Pilot 1/8″ (105mm) (Kotak AW – Kotak Reg. API 2 3/8″) | 8 | 3.6 |
| 4 | 4 Konektor Bit Pilot 1/8″ (105mm) (Kotak AWJ – Kotak Reg. API 2 3/8″) | 11 | 5 |
| 4 | 4 1/8″ (105mm) Konektor Bit Pilot (Kotak NW – Kotak Reg. API 2 3/8″) | 11 | 5 |
| 4 | 4 1/8″ (105mm) Konektor Bit Pilot (Kotak NWJ – Kotak Reg. API 2 3/8″) | 12 | 5.4 |
| 5 | Adaptor Batang ke Tutup – Pin AW | 3 | 1.4 |
| 5 | Adaptor Batang ke Tutup – Pin AWJ | 3 | 1.4 |
| 5 | Adaptor Batang ke Tutup – Pin NW | 7 | 3.2 |
| 5 | Adaptor Batang ke Tutup – Pin NWJ | 6 | 2.7 |
| 6 | Batang Bor AW – 5′ (1524mm) | 21 | 9.5 |
| 6 | Batang Bor AWJ – 5′ (1524mm) | 23 | 10.4 |
| 6 | Batang Bor NW – 5′ (1524mm) | 31 | 14.1 |
| 6 | Batang Bor NWJ – 5′ (1524mm) | 35 | 15.9 |
| Suku Cadang Perbaikan Auger | |||
| 1A | 4 1/4″ (108mm) DK HD Pin Tool Joint | 12 | 7.6 |
| 1B | 4 1/4″ (108mm) DK HD Kotak Alat Bersama | 11 | 7.2 |
| 7 | Baut Kunci Auger ALB3 | 0.4 | 0.2 |
| 8 | Kacang Bushing Auger ABN3 | 0.2 | 0.1 |
| 9 | Kunci Drive Auger ADK2 | 0,3 | 0.1 |
| Auger Cutterheads dan Pilot Bits | |||
| 10 | 4 1/4″ (108mm) DK HD Blade Cutterhead – 8 3/4″ (222mm) OD | 16 | 7.3 |
| 10 | 4 1/4″ (108mm) DK HD Spade Cutterhead – 8 3/4″ (222mm) OD | 20 | 9.1 |
| 10 | 4 1/4″ (108mm) DK HD Blade/Bullet Cutterhead – 8 3/4″ (222mm) OD | 20 | 9.1 |
| 10 | 4 1/4″ (108mm) DK HD Spade/Bullet Cutterhead – 8 3/4″ (222mm) OD | 22 | 10 |
| 10 | 4 1/4″ (108mm) DK HD Bullet Cutterhead – 8 3/4″ (222mm) OD | 22 | 10 |
| 10 | 4 1/4″ (108mm) DK HD 5-T Cutterhead – 8 3/4″ (222mm) OD | 22 | 10 |
| 11 | 4 1/8″ (105mm) Apex Pilot Bit, 2 3/8″ API Reg.Pin | 5 | 2.3 |
| 11 | 4 1/8″ (105mm) Bullet Pilot Bit, 2 3/8″ API Reg.Pin | 8 | 4.1 |
