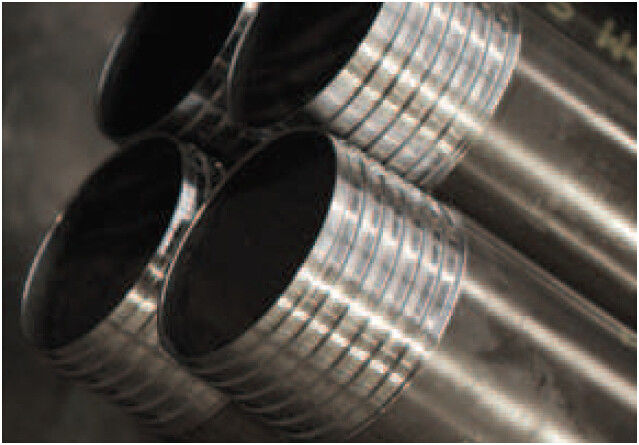

Wireline Core Barrel Pipe Casing Tube HWT Untuk Eksplorasi Mineral Batubara
| Fitur: | High Precision, High Hardness, Tahan Korosi |
| Bahan: | Alloy Steel |
| Teknik: | Dingin digulung |
| Nama Produk: | Pipa Bor Casing |
| Pemakaian: | Well Drilling, Bor Deep Hole |
| Mengetik: | Casing Tube |
Wireline Core Barrel Drill Pipe Casing Tube NW Untuk Eksplorasi Mineral Batubara
Spesifikasi:
tabung casing
1. ukuran standar
2. bahan terbaik, pemakaian lama
3. mendidih tahun yang panjang, standar DCDMA, seri WT
4. sertifikat ISO9001
| UKURAN | ODA tabung (mm) | Coupling IDB (mm) | Thread per inci (TPI) |
| PX | 140 | 125 | 5 |
| HX | 114.5 | 100.1 | 5 |
| NX | 89 | 76.4 | 8 |
| BX | 73.1 | 60.4 | 8 |
| KAPAK | 57.3 | 48.5 | 8 |
| Q Series Drill Rods | |||
| Ukuran | Diameter luar (mm) | Diameter dalam (mm) | Ketebalan dinding (mm) |
| Batang AQ | 44.5 | 34,9 | 4.8 |
| Batang BQ | 55.5 | 46 | 4.75 |
| NQ batang | 71 | 60 | 5.5 |
| HQ batang | 88.9 | 77.9 | 5.5 |
| PQ batang | 114.3 | 103.4 | 5.5 |
| Casing Rods | |||
| Ukuran | Diameter luar (mm) | Diameter dalam (mm) | Benang per inci |
| NW | 88.9 | 76.2 | 4 |
| HW | 114.3 | 101.6 | 4 |
| PW | 139.7 | 127 | 4 |
| 6 " | 168 | 149 | 4 |
| WL46 | 44.15 | 37.15 | 4 |
| WL56 | 54.15 | 47,15 | 4 |
| WL66 | 64.25 | 57.25 | 4 |
| WL76 | 74.25 | 67.25 | 4 |
| WL86 | 84,25 | 77,25 | 4 |
| WL101 | 98 | 88.3 | 4 |
| WL116 | 113 | 103.3 | 4 |
| WL131 | 128 | 118.3 | 4 |
| WL146 | 143 | 133.3 | 4 |
| Bor Data Batang | ||||||
| ID | OD | Berat / 10 ' | Vol / 100 ' | |||
| Ukuran | inci / mm | inci / mm | Kg | Lbs | Liter | Gal AS |
| SEBUAH | 1.375 "/ 34.9mm | 1.750 "/ 44.5mm | 14.04 | 31 | 29.14 | 7.7 |
| ATW | 1.437 "/ 36.5mm | 1.750 "/ 44.5mm | 12.05 | 26.6 | 31.79 | 8.4 |
| B | 1.812 "/46.0mm | 2.188 "/56.6mm | 18.12 | 40 | 50,72 | 13.4 |
| BTW | 1.909 "/48.5mm | 2.225 "/56.5mm | 15.76 | 34.8 | 56.02 | 14.8 |
| N | 2.375 "/60.3mm | 2.750 "/69.9mm | 23.55 | 52 | 87.05 | 23 |
| NTW | 2.525 "/ 64.2mm | 2.875 "/73.0mm | 22.83 | 50.4 | 98.4 | 26 |
| H | 3.062 "/77.8mm | 3.500 "/88.9mm | 34.88 | 77 | 144,58 | 38.2 |
| P | 4.062 "/ 103.2mm | 4.625 "/117.5mm | 48.02 | 106 | 255.1 | 67.4 |
| Data Coring Bit | ||||
| Diameter inti | Diameter lubang | Volume Lubang | ||
| Ukuran | inci / mm | inci / mm | Litek / 100Mtr | US Gal./100Ft |
| SEBUAH | 1.062 "/ 27.0mm | 1.890 "/ 48.0mm | 181 | 14.6 |
| ATW | 1.185 "/30.1mm | 1.890 "/ 48.0mm | 181 | 14.6 |
| B | 1.432 "/ 36.5mm | 2.360 "/ 60.0mm | 282.2 | 22.7 |
| BTW | 1.656 "/42.0mm | 2.360 "/ 60.0mm | 282.2 | 22.7 |
| N | 1.875 "/ 47.6mm | 2.980 "/75.7mm | 451 | 36.3 |
| NTW | 2.205 "/56.0mm | 2.980 "/75.7mm | 451 | 36.3 |
| H | 2.500 "/63.5mm | 3.782 "/96.0mm | 724.4 | 58.3 |
| P | 3.345 "/ 85.0mm | 4.827 "/ 122.6mm | 1180.4 | 95.1 |
| Casing Data | ||||||
| ID | OD | Berat / 10 ' | Volume Lubang | |||
| Ukuran | inci / mm | inci / mm | Kg | Lbs | Liter / 100Mtr | USGal./100Ft |
| AW | 1,90 "/ 48.26mm | 2.350 "/59.69mm | 17.21 | 38 | 85.3 | 18.8 |
| BW | 2.375 "/60.2mm | 2.975 "/ 75.44mm | 31.71 | 70 | 136.2 | 30 |
| NW | 2,99 "/ 75.95mm | 3.620 "/91.95mm | 38,95 | 86 | 202.4 | 44.5 |
| HW | 3,93 "/ 99,82 mm | 4.630 "/117.6mm | 51.19 | 113 | 331.1 | 72.8 |
| PW | 4.84 "/ 122.94mm | 5.660 "/ 143.7mm | 65.23 | 144 | 494.8 | 108.8 |
Aplikasi:
kawat baris casing, inti barel tabung, bor batang kopling, tabung
O. D: 88.9mm
WT: 6.35mm
Tabung casing NW:
Sertifikat ISO & kontrol kualitas.
Produk ini memiliki dua jenis tipe kering dan tipe basah, yang memiliki spesifikasi diameter 26mm, 28mm, 30mm, 38mm, 40mm, dll ... Sebagai pabrikan batang bor batubara kami dapat menyediakan Anda dengan semua kebutuhan pengeboran Anda. . Mereka digunakan untuk anchor bor batu bara listrik, yang merupakan alat yang ideal dan perlu untuk eksploitasi tambang batu bara dan menopang.
Produk ini memiliki dua macam: Solid dan berongga, spesifikasinya adalah: 26, 28, 30, 38, 40 dll.
Sangat cocok untuk bor bor listrik, adalah alat yang ideal untuk tambang batu bara.
Ukuran yang tersedia:
1. Batang bor: BQ, NQ, HQ, PHD, BT, NT, HT, BTW, NTW, HTW
tabung casing: BW, NW, HW, HWT
2. Inti laras: BQ, NQ, HQ, PQ, BTW, perakitan dan perakitan kepala NTW
3. AQ, BQ, NQ, HQ, PQ, T2, T6, BTW, NTW dll. Inti berlian inti, bit shell & shoe reaming (syn dan permukaan-set, PDC)
4. Alat bor: sumbat angkat (standar dan tugas berat), swivel air (compact plus and standard), overshot, outer tube & inner tube wrench, penjepit kaki, dll.
Kemasan & Pengiriman
| Detail Kemasan: | Wooden Case atau Sesuai dengan kebutuhan pelanggan |
| Rincian pengiriman: | 1-7 hari |
