Wear Resistance Diamond Core Drill Bits , Surface Diamond Core Drill Set

1 pc
MOQ
Wear Resistance Diamond Core Drill Bits , Surface Diamond Core Drill Set
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Cahaya Tinggi:

Diamond Core Drilling Bits

,

Diamond Core Drill Bits For Rock

Informasi dasar
Nama merek: ROSCHEN
Sertifikasi: ISO, CE
Nomor model: BQ NQ HQ PQ
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Carton Box
Menyediakan kemampuan: 1000 pcs
Deskripsi Produk

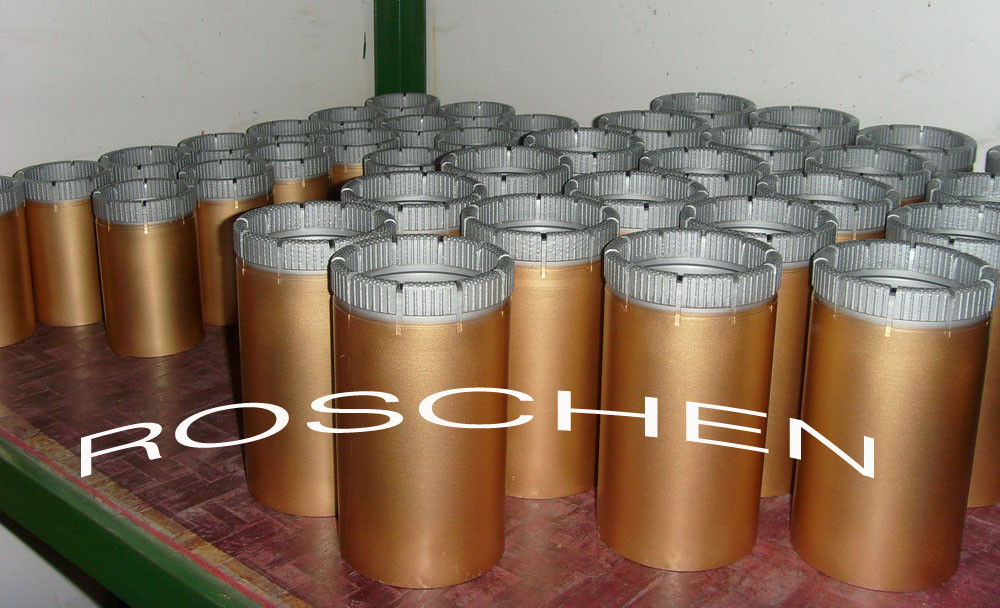

BQ NQ HQ PQ Boart Longyear Surface Set Diamond Core Bits For Faster Drilling Stone





Surface-Set Diamond Bits are set with a singular layer of natural or synthetic diamond utilizing a hard matrix compound on the face of the bit. The diamond set design ensures sufficient overlap to prevent premature wear of the matrix.


Surface-Set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits. They are also recommended for use in drilling harder formations where the available rotational speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.



Specifications:



1. All D.C.D.M.A. standards
2. Wireline series: AQ, BQ, NQ, HQ, PQ/BQ-3, NQ-2
3. T2 series: 46, 56, 66, 76, 86 and 101
4. T6 series: 76, 86, 101, 116, 131 and 146
5. T6S series: 76, 86, 101, 116, 131 and 146
6. B series: 46, 56, 66, 76, 86, 101, 116, 131 and 146


Core bits Reaming Shell
Size O.D  (mm) I.D (mm) Size Set Diameter (mm)
AQ 47.75/47.50 27.10/26.85 AQ 48.13/47.88
AWG(AX) 47.75/47.50 30.23/29.97 AWG(AX) 48.13/47.88
AWM 47.75/47.50 30.23/29.97 AWM 48.13/47.88
BQ 59.69/59.44 36.52/36.27 BQ 60.07/59.82
BQ3 59.69/59.44 33.65/33.40 BQ3 60.07/59.82
BWG(BX) 59.69/59.44 42.16/41.91 BWG(BX) 60.07/59.82
BWM 59.69/59.44 42.16/41.91 BWM 60.07/59.82
NQ 75.44/75.19 47.75/47.50 NQ 75.82/75.57
NQ2 75.44/75.19 50.80/50.55 NQ2 75.82/75.57
NQ3/NQTT 75.44/75.19 45.21/44.96 NQ3/NQTT 75.82/75.57
NWG(NX) 75.44/75.19 54.86/54.61 NWG(NX) 75.82/75.57
NWM 75.44/75.19 54.86/84.61 NWM 75.82/75.57
NMLC 75.44/75.19 52.12/51.87 NMLC 75.82/75.57
HQ 95.76/95.38 63.63/63.38 HQ 96.27/95.89
HQ3/HQTT 95.76/95.38 61.24/60.99 HQ3/HQTT ---
HWG(HX) 98.98/98.60 76.33/76.08 HWG(HX) 99.36/99.11
HMLC 98.98/98.96 63.63/63.38 HMLC 98.20/97.80
PQ 122.30/121.80 85.09/84.84 PQ 122.81/122.43
PQ3 122.30/121.80 83.18/82.93 PQ3 122.81/122.43
T2-76 76.12/75.87 61.82/61.57 T2-76 76.50/76.20
T2-101 101.12/100.80 83.82/83.57 T2-101 101.50/101.20
T6-76 76.12/75.87 57.12/56.87 T6-76 76.50/76.20
T6-101 101.12/100.80 79.12/78.87 T6-101 101.50/101.20
T6-131 131.19/130.80 108.13/107.00 T6-131 131.57/131.19
