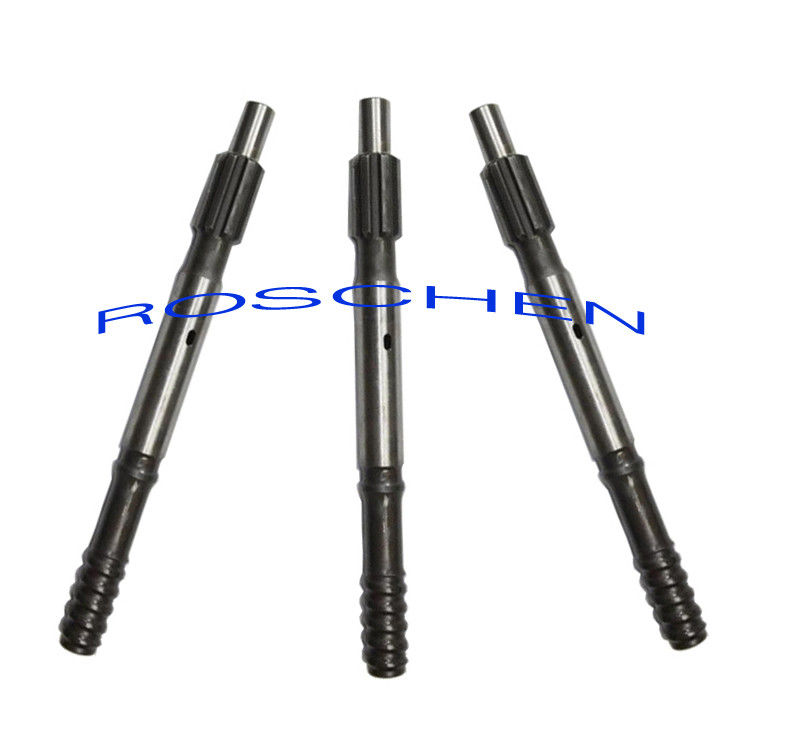

Shank Adapter Model Atlas Copco 1032-T38 Dia.45mm 550mm Long
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Used in top hammer drilling systems
Applications:
1. Underground mining
2. Tunneling
3. Quarry
Shank adaptor or shank adapter, the task of the shank adapters is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.
The Striking Bar from ROSCHEN are therefore designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through carburizing. Around 300 different Drifter Shank adapter suitable for different rock drills are currently available from Atlas Copco series drifters, Ingersoll Rand series drifters, Halco/Tamrock series drifters, Furukawa series drifters Garden Dever series drifters etc. Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Roschen offer both internal and external flushing options.
1. Internal flushing uses a water tube that fits through the center of the drill and into an o-ring seal in the end of the shank to transfer flushing into the drill string.
2. With external flushing, holes or a slot are required in the side of the shank adapter. These line up between seals inside the front head or water box of the rock drill when the shank is installed. Flushing medium is supplied directly to this device and is introduced into the drill string through the shank.
The shanks for hydraulic drills and some pneumatic drills have external or front head flushing. Hydraulic shanks generally have at least a 5 to 14-spline configuration, and pneumatic shanks tend to have internal or through-flushing and can generally be identified by their lugs or 4-spline configuration.
Advantage:
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
| Material: | Tungsten Carbide | Color: | As Per Customer Requirements |
| Processing: | CNC Milling And Proprietary Heat Treatment Process | Type: | Mincon Shank Adapters |
