Reverse Circulation Bits / RC Bits Pengeboran Cepat Lubang Panas Bumi Pengeboran
Bit RC
BIT SIRKULASI MUNDUR

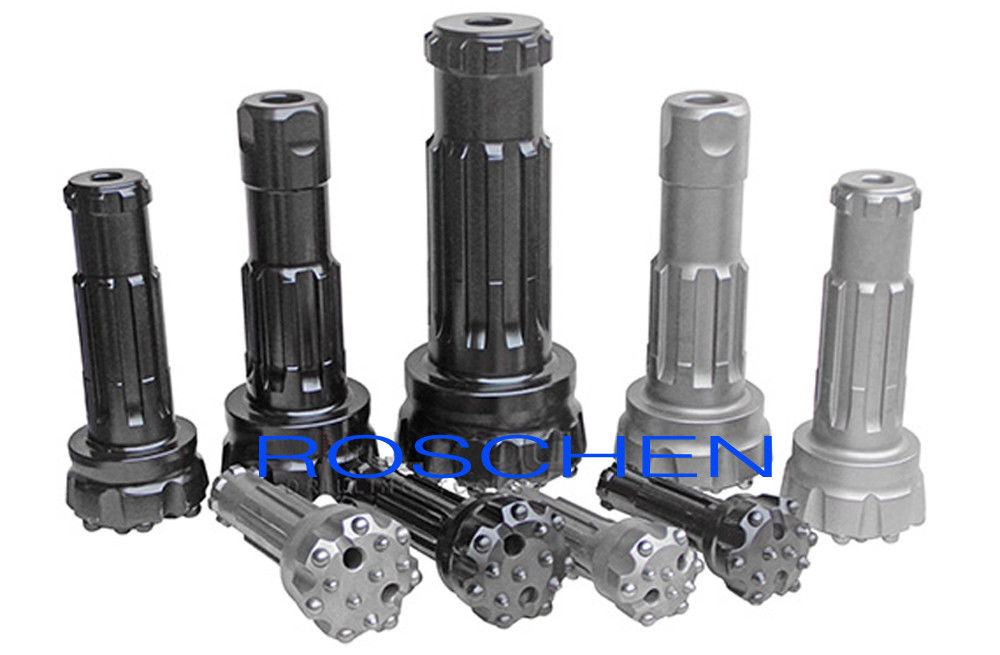

Rangkaian mata bor RC Sirkulasi Balik Roschen berkualitas tinggi dirancang khusus untuk bekerja dengan Palu RC kami.Karena mekanisme penyegelan mata bor kami, masalah kontaminasi sampel tidak menjadi masalah.Menggunakan desain 12 spline shank kami yang unik, RC Bit ini memberikan kinerja dan keandalan yang luar biasa.
Fitur:
1. Menggunakan karbida kelas yang lebih tinggi untuk umur yang lebih lama;
2. Meminimalkan erosi lubang pada formasi yang rapuh
3. Mengebor lebih cepat melalui formasi lunak dengan lebih sedikit penyumbatan
4. Mengebor lurus melalui formasi terkonsolidasi dan tidak terkonsolidasi
RC531 RC bit | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
86 | 2 1/4 | 6x12 | 4x12 | 35 | 2 | 84 | 4.2 | RC531-86 |
89 | 2 1/2 | 8x12 | 8x12 | 35 | 2 | 87 | 4.3 | RC531-89 |
95 | 2 3/4 | 8x12 | 8x12 | 35 | 2 | 93 | 4.6 | RC531-95 |
102 | 3 | 8x12 | 8x12 | 35 | 2 | 100 | 4.9 | RC531-102 |
RC004 RC bit | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
114 | 4 1/2 | 8x14 | 6x14 | 35 | 2 | 112 | 11.5 | RC004-114 |
118 | 4 5/8 | 8x14 | 6x14 | 35 | 2 | 116 | 11.7 | RC004-118 |
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 12 | RC004-121 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 12.4 | RC004-127 |
RC542 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 10.6 | RC542-121 |
124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | RC542-124 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11 | RC542-127 |
130 | 5 1/8 | 8x14 | 10x14 | 35 | 2 | 128 | 11.3 | RC542-130 |
RC543 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 10.8 | RE543-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 11 | RE543-127 |
130 | 5 1/8 | 8x14 | 10X14 | 35 | 2 | 128 | 11.3 | RE543-130 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 11.8 | RE543-133 |
RC545 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 13.3 | RE545-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 13.5 | RE545-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 13.8 | RE545-133 |
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 14.2 | RE545-136 |
Bit RD40 RC | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 14.3 | RC40-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 14.7 | RC40-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 15.2 | RC40-133 |
138 | 5 4/9 | 8x16 | 6x16 + 3x14 | 35 | 2 | 136 | 15.8 | RC40-138 |
Bit RD52 RC | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 11.2 | RC52-133 |
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 11.5 | RC52-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 11.9 | RC52-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 12.3 | RC52-143 |
Bit RD547 RC | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 15.1 | RC547-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 15.5 | RC547-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 15.8 | RC547-143 |
146 | 5 3/4 | 8x16 | 6x16 + 3x14 | 35 | 2 | 144 | 16.3 | RC547-146 |
RC54 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia mm | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 18.2 | RC54-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 18.5 | RC54-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 18.8 | RC54-143 |
146 | 5 3/4 | 8x16 | 6x16 + 3x14 | 35 | 2 | 144 | 19.2 | RC54-146 |
RE531 RC bit | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
86 | 2 1/4 | 6x12 | 4x12 | 35 | 2 | 84 | 4.2 | RE531-86 |
89 | 2 1/2 | 8x12 | 8x12 | 35 | 2 | 87 | 4.3 | RE531-89 |
95 | 2 3/4 | 8x12 | 8x12 | 35 | 2 | 93 | 4.6 | RE531-95 |
102 | 3 | 8x12 | 8x12 | 35 | 2 | 100 | 4.9 | RE531-102 |
RE004 RC bit | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
114 | 4 1/2 | 8x14 | 6x14 | 35 | 2 | 112 | 11.5 | RE004-114 |
118 | 4 5/8 | 8x14 | 6x14 | 35 | 2 | 116 | 11.7 | RE004-118 |
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 12 | RE004-121 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 12.4 | RE004-127 |
RE542 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 10.6 | RE542-121 |
124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | RE542-124 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11 | RE542-127 |
130 | 5 1/8 | 8x14 | 10x14 | 35 | 2 | 128 | 11.3 | RE542-130 |
RE543 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 10.8 | RE543-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 11 | RE543-127 |
130 | 5 1/8 | 8x14 | 10X14 | 35 | 2 | 128 | 11.3 | RE543-130 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 11.8 | RE543-133 |
RE545 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 13.3 | RE545-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 13.5 | RE545-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 13.8 | RE545-133 |
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 14.2 | RE545-136 |
Bit PR40 RC | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 14.3 | PR40-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 14.7 | PR40-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 15.2 | PR40-133 |
138 | 5 4/9 | 8x16 | 6x16 + 3x14 | 35 | 2 | 136 | 15.8 | PR40-138 |
Bit PR52 RC | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 11.2 | PR52-133 |
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 11.5 | PR52-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 11.9 | PR52-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 12.3 | PR52-143 |
RE547 RC bit | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 15.1 | RE547-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 15.5 | RE547-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 15.8 | RE547-143 |
146 | 5 3/4 | 8x16 | 6x16 + 3x14 | 35 | 2 | 144 | 16.3 | RE547-146 |
PR54 | ||||||||
Diameter | Tidak ada x Diameter tombol mm | Sudut tombol | Lubang flusing | Shroud Dia (mm) | Berat (kg) | Bagian No | ||
mm | inci | Tombol Pengukur | Tombol Depan | |||||
136 | 5 3/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 134 | 18.2 | PR54-136 |
140 | 5 1/2 | 8x16 | 6x16 + 3x14 | 35 | 2 | 138 | 18.5 | PR54-140 |
143 | 5 5/8 | 8x16 | 6x16 + 3x14 | 35 | 2 | 141 | 18.8 | PR54-143 |
146 | 5 3/4 | 8x16 | 6x16 + 3x14 | 35 | 2 | 144 | 19.2 | PR54-146 |
Informasi produk pengeboran eksplorasi lebih lanjut, jangan ragu untuk menghubungi kami.
