Ballistic buttons Top Hammer Drilling R32 T38 T45 T51 T60 Retractable Button Drill Bit
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Name: Button bits
Materials: Ballistic tungsten carbide buttons
Type: Retractable Button Drill Bit
Drill: Blast Hole drilling
Site: Zambia Copper mining drilling
Projects: Codelco Chile Copper Mining
Use: South Africa Mining drilling
Usage: Australia mining drilling
Size: R32 T38 thread button bits
Cahaya Tinggi:

Berlian inti pengeboran bit

,

Bor Beton Core

Informasi dasar
Tempat asal: CHINA
Nama merek: ROSCHEN
Sertifikasi: ISO
Nomor model: R32, T38, T45, T51, T60
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Ply-wooden cases or cartons
Menyediakan kemampuan: 10000 pcs
Deskripsi Produk

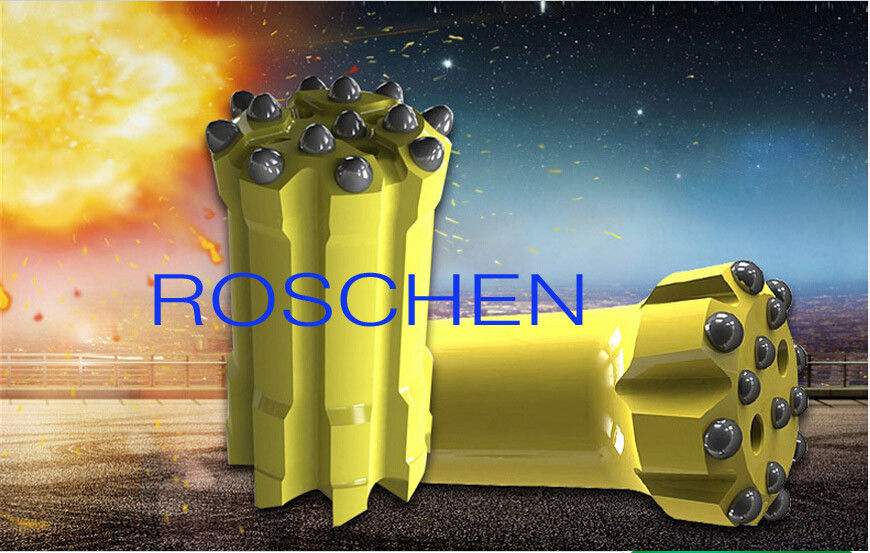

Ballistic buttons R32, T38, T45, T51, T60 Retractable Button Drill Bits



CAPP standard bits for drifting and tunnelling are available in three basic designs.




Roschen button bits quality can be replaced of by Halco

, atlas copco basis on the quality grade, and in the after sales service.



Description:

Button bits are made with best quality alloy steel bar and tungsten carbide buttons, through advanced heat treatment technology like Atlas Copco, Halco

& Boart Longyear.



Material: Alloy steel bar 45CrNiMoV and tungsten carbide tips YK05
Body type: Normal body or retrac body
Thread type: R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60
Diameter: 32mm-127mm
Button bit shape: spherical and ballistic
Face shape: Flat shape and drop-center shape



Specifications:



Diameter Number x Button Diameter Flushing Hole Weight Approx
mm inch Front Gauge Angle Front Slide Kg
Spherical buttons / Parabolic buttons / Ballistic buttons
64 2 1/2 3x11 6x12 35 3 / 1.8
64 2 1/2 4x10 8x12 40 2 / 1.6
64 2 1/2 3x10, 1x10 6x11 35 3 / 1.7
70 2 3/4 4x11 8x11 40 2 / 1.9
70 2 3/4 4x10, 1x10 8x11 30 4 / 1.9
70 2 3/4 3x10, 1x10 6x12 35 3 / 1.8
76 3 4x11 8x11 40 2 / 2.4
76 3 5x11 8x13 35 2 1 2.5
76 3 3x11,1x11 6x12 35 3 1 2.6
76 3 4x11,1x11 8x12 35 4 / 2.6
76 3 4x11,1x11 8x12 40 4 / 2.6
89 3 1/2 4 x 13 8 x 13 40 2 / 3.3
89 3 1/2 5 x 13 8 x 13 35 2 / 3.3
89 3 1/2 6 x 11 8 x 12 35 2 / 3.3
89 3 1/2 3x11, 2x11 6 x 13 35 3 / 3.3
89 3 1/2 4x11, 1x11 8 x 13 35 4 / 3.3
89 3 1/2 4x13, 1x13 8 x 13 35 4 / 3.3
