High Air Pressure Cop 32 DTH Hammer and Button Bit
High Air Pressure Cop 32 DTH Hammer and Button Bit for Water Well Drilling
DOWN THE HOLE DRILLING HAMMERS
DTH hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.
Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.
Roschen offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method.
Made with high quality of raw material through special heat treatment, especially, tungsten carbide of tapered button bits are from Boart long year, widely applied in Hand Hold ( short-hole) drilling system for dimensional stone quarrying. At now, we are exporting the huge qty of Q7- 33- 7 22-80, Q9 -45 -12 22- 71 for Indian quarry and Norway, Finland quarry.
Diameter of bits from 30mm to 50mm with 4, 6, 7, 11, 12 degree, premium alloy tapered drill steel with Hexagonal. 22mm and Hexagonal. 25mm, The deliver capacity are very strong and can completely meet customer's requirements on delivery design, number of buttons is 4, 5, 6, 7, 8, 9, 7 buttons is very popular for hold held (short holes ) and blast drilling system.
Main Products:
1. 1-22 inch middle-low/high air pressure DTH hammers & bits
2. Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
3. Eccentric overburden drilling Equipment
4. Hole opener bit
5. Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
6. Extension Rod, M/F Rod, M/m Rod, Drift Rod,
7. Shank adapter, coupling sleeves and all kinds of adapters
Product Name: | DTH drill bits |
Description: | DTH drill bits are used for blast hole drilling and water well drilling projects. |
Working with DTH hammer, mainly applied in Mining, | |
Marble quarry or well drilling and other construction projects. | |
Material: | High quality carbide + High quality carbon steel |
MOQ: | 5pcs |
Compatibility Series: | COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc |
Specification: | Diameter: (mm) | Weight: (kg) |
Low air pressure DTH bits CIR type | 68 ~ 200 | 2.6 ~ 48 |
Middle air pressure BR & COP type | 76 ~ 110 | 3.8 ~ 15 |
3 inch high Air pressure DTH bits | 85 / 90 / 95 / 100 / 105 | 4.2 ~ 5.5 |
4 inch high Air pressure DTH bits | 105 / 110 / 115 / 120 / 127 | 9 ~ 12 |
5 inch high Air pressure DTH bits | 133 / 140 / 146 / 152 / 165 | 15 ~ 18.5 |
6 inch high Air pressure DTH bits | 152 / 165 / 178 / 190 / 203 | 26 ~ 36 |
8 inch high Air pressure DTH bits | 195 / 203 / 216 / 254 / 305 | 33 ~ 95 |
ROSCHEN DTH Bits Specifications | ||||
Hammer Size | Bits diameter | Shank | ROSCHEN CODE | |
Metric | Inch | |||
1" | 64mm-70mm | 2 1/2"-2 3/4" | BR1 | ROS 11 |
2" | 70mm-95mm | 2 3/4"-3 3/4" | MACH20/BR2 | ROS 22 |
3" | 90mm-102mm | 3 1/2"-4" | COP32/COP34/MACH303 | ROS 32 |
M30/DHD3.5/BR3 | ROS 34 | |||
4" | 105mm-152mm | 4 1/8"-6" | COP44/DHD340/MACH44 | ROS 42 |
SD4/M40/QL40 | ROS 44 | |||
5" | 133mm-165mm | 5 1/4"-6 1/2" | COP54/DHD350R/MACH50 | ROS 52 |
SD5/M50/QL50/BR5 | ROS 54 | |||
6" | 152mm-254mm | 4 1/8"-10" | COP64/DHD360/SD6 | ROS 62 |
M60/QL60/Bulroc BR6 | ROS 64 | |||
8" | 203mm-330mm | 8"-13" | COP84/DHD380/SD8 | ROS 82 |
QL80/M80/M85 | ROS 84 | |||
10" | 254mm-380mm | 10"-15" | SD10 | ROS 100 |
NUMA100 | ||||
12" | 305mm-508mm | 12"-20" | DHD1120/SD12 | ROS 120 |
NUMA120/NUMA125 | ||||
Notes: Any special size of DTH bits will be available by requests. | ||||
Metzke, Remet thread is available! |

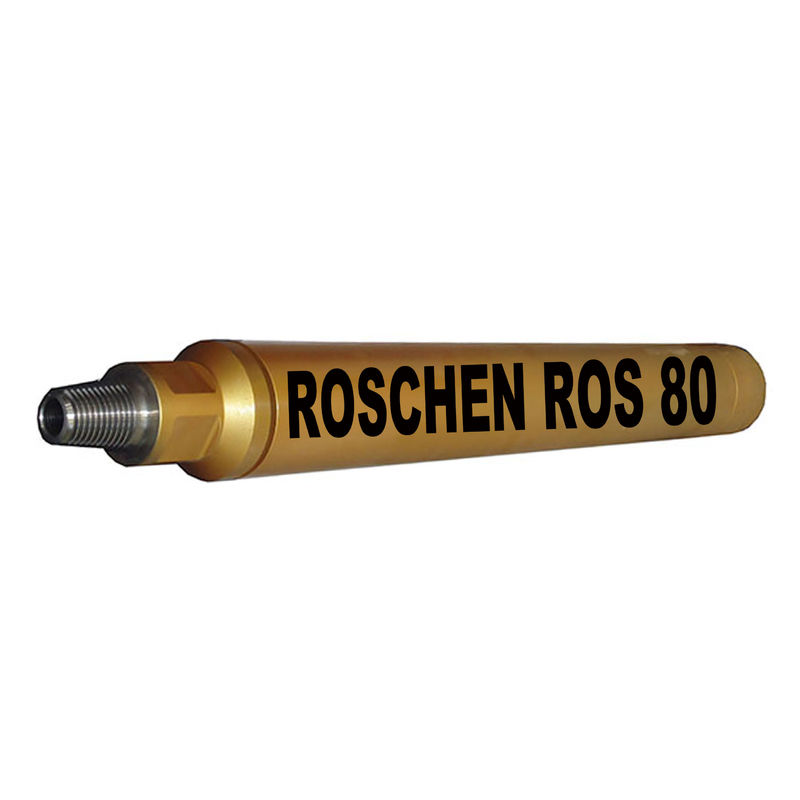

ROSCHEN DTH Hammers Specifications | |||||||
Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
2" | BR2 | ROS 11 ROS 22 | RD50 box | ¢70-¢90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
1.0Mpa | 4m3/min | ||||||
1.4Mpa | 5m3/min | ||||||
3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
COP32/COP34 | |||||||
M30 | 1.5Mpa | 9m3/min | |||||
4" | DHD340 | ROS 34 | API 2 3/8" Reg | ¢110-¢135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
COP44 | |||||||
QL40 | |||||||
SD4 | 1.8Mpa | 10m3/min | |||||
M40 | 2.4Mpa | 15m3/min | |||||
5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/API 3 1/2" Reg | ¢135-¢155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
COP54 | |||||||
QL50 | |||||||
SD5 | 1.8Mpa | 15m3/min | |||||
M50 | 2.4Mpa | 23m3/min | |||||
6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ¢155-¢190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
COP64 | |||||||
QL60 | |||||||
SD6 | 1.8Mpa | 20m3/min | |||||
M60 | 2.4Mpa | 28.5m3/min | |||||
8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ¢195-¢254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
COP84 | |||||||
QL80 | 1.8Mpa | 26m3/min | |||||
SD8 | 2.4Mpa | 34m3/min | |||||
M80/M85 | |||||||
10" | SD10 | ROS 100 | API 6 5/8" Reg | ¢254-¢311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
Numa100 | 1.8Mpa | 40m3/min | |||||
ROS 100 | 2.4Mpa | 55m3/min | |||||
12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ¢305-¢445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
SD12 | 1.8Mpa | 56m3/min | |||||
Numa120 | 2.4Mpa | 78m3/min | |||||
Notes: Any special size of DTH bits will be available by requests. | |||||||
Metzke, Remet thread is available! |
