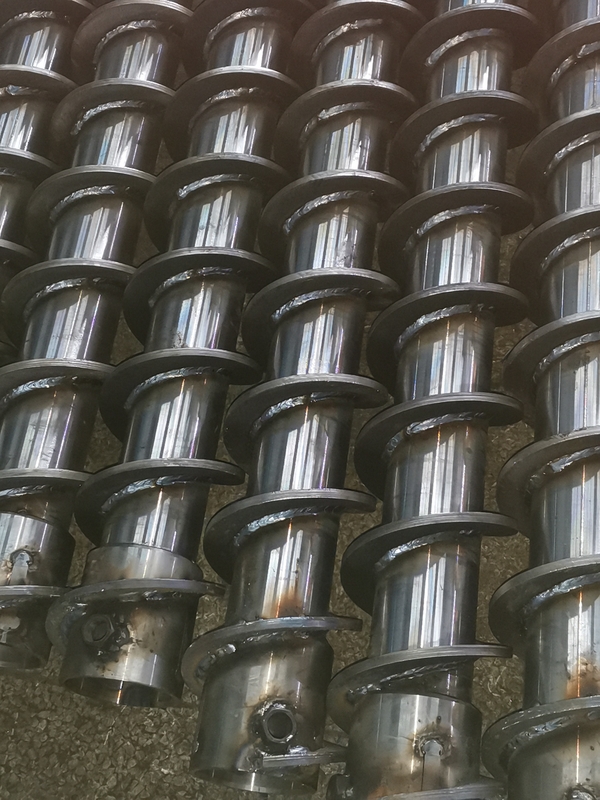

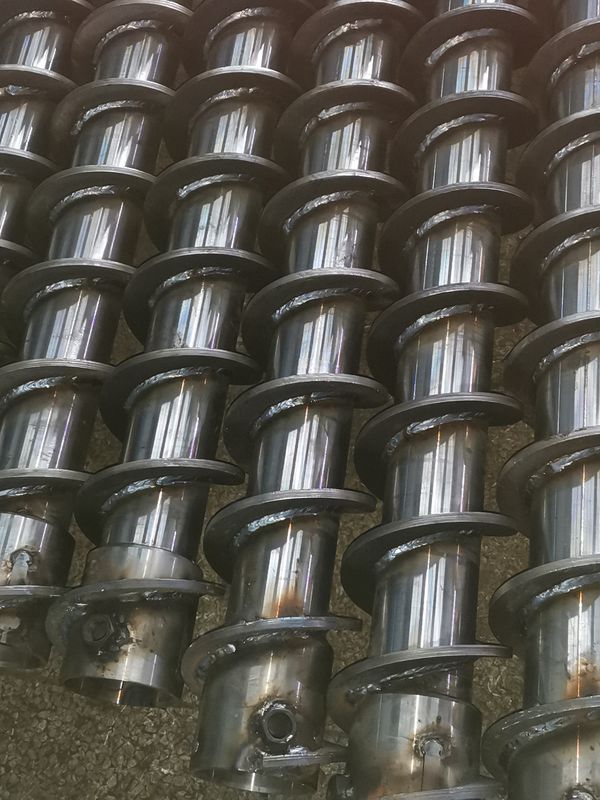

6 1/4 " (159mm) Double Key Hollow Stem Auger
Deskripsi
Semua 6 1/4 " (159mm) Double Key Hollow Stem Augers memiliki desain terbang keras yang terus menerus, 3/8" (9.5mm) tebal di tepi luar dengan pitch 6" (152mm).Gabungan alat terbuat dari 4142 baja paduan yang diobati panas dan memiliki koneksi baut ganda.
Spesifikasi:
| Tidak. | Deskripsi | Bagian # | Lbs. | Kg. |
| Bagian Auger | ||||
| 1 | 6 1/4 " (159mm) DK Hollow Stem Auger 6 1/4 " (159mm) I.D. x 9 5/8 " (244mm) O.D. x 5'(1524mm) | A614200 | 131 | 59.4 |
| 2 | 6 1/4 " (159mm) DK Drive Cap dengan 1 5/8 " (41mm) Hex Pin | ADC614210 | 39 | 17.7 |
| 2 | 6 1/4 " (159mm) DK Drive Cap dengan 2 " (51mm) Hex Pin | ADC614211 | 42 | 19.1 |
| 3 | #6 Nut & Bolt untuk adaptor Rod-to-Cap | ANAB6 | 1.3 | 0.4 |
| 4 | 6 1/8 " (156mm) Pilot Bit Connector (AW Box 3 1/2 " API Reg. Box) | APBC618AWB | 8 | 3.6 |
| 4 | 6 1/8 " (156mm) Pilot Bit Connector (AWJ Box 3 1/2 " API Reg. Box) | APBC618AWJB | 11 | 5 |
| 4 | 6 1/8 " (156mm) Pilot Bit Connector (NW Box 3 1/2 " API Reg. Box) | APBC618NWB | 11 | 5 |
| 4 | 6 1/8 " (156mm) Pilot Bit Connector (NWJ Box 3 1/2 " API Reg. Box) | APBC618NWJB | 12 | 5.4 |
| 5 | Adaptor Rod-to-Cap | ARCAAWP | 3 | 1.4 |
| 5 | Adaptor Rod-to-Cap | ARCAAWJP | 3 | 1.4 |
| 5 | Adaptor Rod-to-Cap | ARCANWP | 7 | 3.2 |
| 5 | Adaptor Rod-to-Cap | ARCANWJP | 6 | 2.7 |
| 6 | AW Drill Rod 5′ (1524mm) | ADR5AW | 21 | 9.5 |
| 6 | AWJ Drill Rod 5′ (1524mm) | ADR5AWJ | 23 | 10.4 |
| 6 | NW Drill Rod 5′ (1524mm) | ADR5NW | 31 | 14.1 |
| 6 | Besi pengeboran NWJ ′′ 5′ (1524mm) | ADR5NWJ | 35 | 15.9 |
| Bagian-bagian perbaikan auger | ||||
| 1A | 6 1/4 " (159mm) DK Pin Tool Joint | ATJ6142P | 13 | 5.9 |
| 1B | 6 1/4 " (159mm) DK Box Tool Joint | ATJ6142B | 12 | 5.4 |
| 7 | ALB2 Auger Lock Bolt | ALB2 | 0.3 | 0.1 |
| 8 | ABN2 Kacang-kacangan | ABN2 | 0.3 | 0.1 |
| 9 | Kunci Penggerak Auger ADK1 | ADK1 | 0.3 | 0.1 |
| Kepala pemotong penggergaji dan bagian-bagian pilot | ||||
| 10 | 6 1/4 " (159mm) DK Blade Cutterhead ′′ 11 " (279mm) O.D. | ACH614250 | 23 | 10.4 |
| 10 | 6 1/4 " (159mm) DK Spade Cutterhead ′′ 11 " (279mm) O.D. | ACH614251 | 22 | 10 |
| 10 | 6 1/4 " (159mm) DK Blade/Bullet Cutterhead 11 " (279mm) O.D. | ACH614260 | 28 | 12.7 |
| 10 | 6 1/4 " (159mm) DK Spade / Bullet Cutterhead 11 " (279mm) O.D. | ACH614261 | 27 | 12.2 |
| 10 | 6 1/4 " (159mm) DK Bullet Cutterhead ′′ 11 " (279mm) O.D. | ACH614270 | 29 | 13.2 |
| 10 | 6 1/4 " (159mm) DK 5-T Cutterhead ′′ 11 " (279mm) O.D. | ACH6142718 | ️ | ️ |
| 11 | 6 1/8 " (156mm) Apex Pilot Bit, 3 1/2 " API Reg. Pin | APB618APX | ️ | ️ |
| 11 | 6 1/8 " (156mm) Bullet Pilot Bit, 3 1/2 " API Reg. Pin | APB618BUL | ️ | ️ |
Pencetak batang berongga
Penambang batang berongga banyak digunakan untuk pengambilan sampel tanah dan pemantauan air tanah di instalasi industri dan komersial.Tidak seperti metode batang padat, batang pengeboran dapat melewati pusat bagian auger dan sampel tanah yang tidak terganggu dapat diambil untuk analisis atau pipa pemantauan air tanah dapat dipasang.
