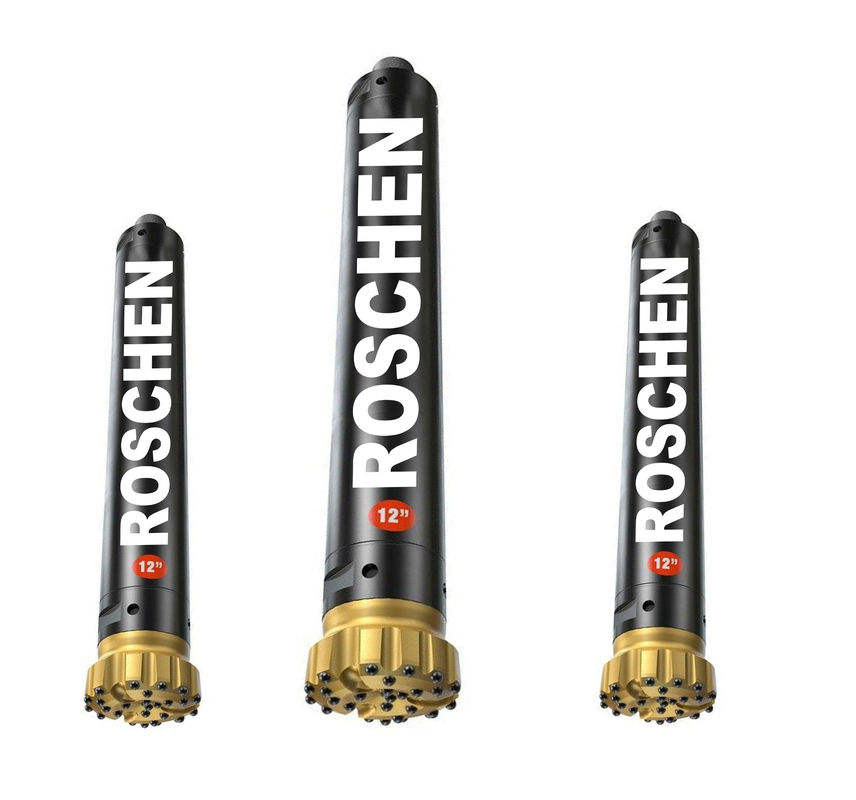

RH350 Hammer DTH Drilling Tools 10" SD DTH Hammer Bigger Size Hole Down The Hole Drilling
The RH350 is a lean and dependable hammer based on a well-proven design.
This hammer works with various industry-standard shank designs. The RH350 is suitable when drilling holes with a diameter from 244 mm up to 900 mm.
Roschen hammers combine high power and speed with low fuel consumption. They are tried and tested in demanding applications the world over.
You can be assured our extensive offering will deliver results. With the flexibity to work with various industry-standard shank designs and a wide range of standard size hammers we have a solution to match your requirements.
|ROSCHEN Model||Hammer||Weight kg / lb||Outside diameter mm/inch||Hammer length mm/inch|
|ROS 100||RH350 10" SD||360 / 795||226 / 8.9||1480 / 58.3|
|ROS 120||RH350 12" SD||618 / 1360||275 / 10.8||1729 / 68.1|
|ROS 120||RH350 12" DHD||620 / 1365||275 / 10.8||1750 / 68.9|
|ROS 150||RH350 15" SD||1100 / 2420||360 / 14.2||1904 / 75|
|ROS 180||RH350 18" SD||1560 / 3430||410 / 16.1||1040 / 80.3|
|ROS 180||RH350 18" Numa||1574 / 3460||410 / 16.1||1993 / 78.5|
|ROSCHEN DTH Hammers Specifications|
|Hammer Size||Bit Shank||ROSCHEN Code||Connection Thread||Suitable bit||Working pressure||Air consumption|
|3"||DHD3.5||ROS 32||API 2 3/8" Reg||￠90-￠110mm||1.0-1.5Mpa||1.0Mpa||4.5m3/min|
|4"||DHD340||ROS 34||API 2 3/8" Reg||￠110-￠135mm||1.0-2.5Mpa||1.0Mpa||6m3/min|
|API 2 3/8"Reg/API 3 1/2" Reg||￠135-￠155mm||1.0-2.5Mpa||1.0Mpa||9m3/min|
|API 3 1/2" Reg||￠155-￠190mm||1.0-2.5Mpa||1.0Mpa||10m3/min|
|API 4 1/2" Reg||￠195-￠254mm||1.0-2.5Mpa||1.0Mpa||15m3/min|
|10"||SD10||ROS 100||API 6 5/8" Reg||￠254-￠311mm||1.0-2.5Mpa||1.0Mpa||22m3/min|
|12"||DHD1120||ROS 120||API 6 5/8" Reg||￠305-￠445mm||1.0-2.5Mpa||1.0Mpa||30m3/min|
|Notes: Any special size of DTH bits will be available by requests.|
|Metzke, Remet thread is available!|
