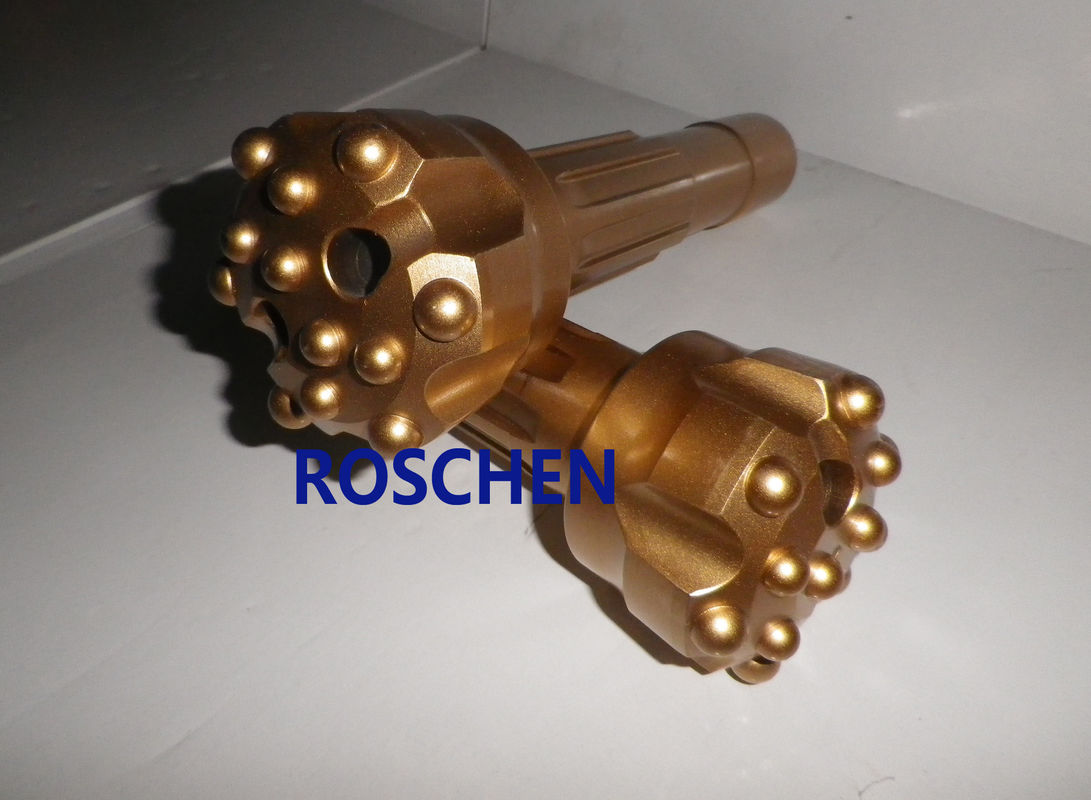

Bit bottom hole (crown), COP 32 / 31/2 - 90 mm Ke Bawah Pengeboran Lubang
Cop32 115mm Button Bits untuk Pengeboran Lubang Ledakan,
Tombol Bits COP 32 115mm untuk Pengeboran Lubang Ledakan,
Palu DTH, palu Atlas Copco COP 44 termasuk sedikit, untuk batu kapur
Bit DTH Roschen, bit pengeboran Down The Hole, bit tombol DTH, bit palu DTH digunakan untuk penambangan, konstruksi, sumur air, pengeboran minyak / gas, dll.
Semua produk kompatibel dengan banyak produk yang diproduksi oleh Atlas Copco, Mincon dll, semua produk kami banyak digunakan dalam proyek pertambangan, tunneling, quarrying, konstruksi, dan teknik sipil.DTH Hammer, DTH Bit, DTH Drill Rig produsen dan pemasok di China, menawarkan HD55 Flat Face Bit, HD45 Flat Face Bit, HD 35 Flat Face Bit, dan sebagainya.
Pilihan bentuk wajah bit:
1. Jatuhkan Pusat Bit
2. Wajah Cekung
3. Wajah Cembung
4. Wajah Pengukur Ganda
5. Bit Wajah Datar
Pemilihan bentuk tombol karbida:
1. Tombol Kubah / Bulat
2. Tombol Parabola / Semi-Balistik
3. Tombol Balistik
4. Tombol Tajam
5. Tombol Datar
Spesifikasi Produk: Bit tombol DTH Seri Cop32:
| Untuk palu 3 " | Bit Dia. | Tidak. Lubang Udara | Mengukur | Depan | Bobot | |
| Bit DTH betis | mm | inci | Tombol | Tombol | (Kg) | |
| COP32 | 85 | 3 11/32 " | 2 | 6 × φ13 | 4 × φ12 | 4.2 |
| 90 | 3 1/2 " | 2 | 6 × φ14 | 4 × φ12 | 4.5 | |
| 95 | 3 3/4 " | 2 | 6 × φ14 | 4 × φ13 | 4.7 | |
| 100 | 3 7/8 " | 2 | 8 × φ12 | 6 × φ12 | 5 | |
| 105 | 4 1/8 " | 2 | 8 × φ13 | 6 × φ12 | 5.3 | |
| BR3 | 85 | 3 11/32 " | 2 | 6 × φ13 | 4 × φ12 | 3.8 |
| 90 | 3 1/2 " | 2 | 6 × φ14 | 4 × φ12 | 4 | |
| 95 | 3 3/4 " | 2 | 6 × φ14 | 4 × φ13 | 4.3 | |
| 100 | 3 7/8 " | 2 | 8 × φ12 | 6 × φ12 | 4.8 | |
| 105 | 4 1/8 " | 2 | 8 × φ13 | 6 × φ12 | 5.2 | |
| DHD3.5 / COP34 | 85 | 3 11/32 " | 2 | 6 × φ13 | 4 × φ12 | 4.2 |
| 90 | 3 1/2 " | 2 | 6 × φ14 | 4 × φ12 | 4.5 | |
| 95 | 3 3/4 " | 2 | 6 × φ14 | 4 × φ13 | 4.8 | |
| 100 | 3 7/8 " | 2 | 8 × φ12 | 6 × φ12 | 5 | |
| 105 | 4 1/8 " | 2 | 8 × φ13 | 6 × φ12 | 5.5 | |
| QL30 | 85 | 3 11/32 " | 2 | 6 × φ13 | 4 × φ12 | 4.5 |
| 90 | 3 1/2 " | 2 | 6 × φ14 | 4 × φ12 | 4.7 | |
| 95 | 3 3/4 " | 2 | 6 × φ14 | 4 × φ13 | 4.9 | |
| 100 | 3 7/8 " | 2 | 8 × φ12 | 6 × φ12 | 5 | |
| 105 | 4 1/8 " | 2 | 8 × φ13 | 6 × φ12 | 5.5 | |
| Spesifikasi ROSCHEN DTH Bits | ||||
| Ukuran Palu | Diameter bit | Betis | KODE ROSCHEN | |
| Metrik | Inci | |||
| 1 " | 64mm-70mm | 2 1/2 "-2 3/4" | BR1 | ROS 11 |
| 2 " | 70mm-95mm | 2 3/4 "-3 3/4" | MACH20 / BR2 | ROS 22 |
| 3 " | 90mm-102mm | 3 1/2 "-4" | COP32 / COP34 / MACH303 | ROS 32 |
| M30 / DHD3.5 / BR3 | ROS 34 | |||
| 4 " | 105mm-152mm | 4 1/8 "-6" | COP44 / DHD340 / MACH44 | ROS 42 |
| SD4 / M40 / QL40 | ROS 44 | |||
| 5 " | 133mm-165mm | 5 1/4 "-6 1/2" | COP54 / DHD350R / MACH50 | ROS 52 |
| SD5 / M50 / QL50 / BR5 | ROS 54 | |||
| 6 " | 152mm-254mm | 4 1/8 "-10" | COP64 / DHD360 / SD6 | ROS 62 |
| M60 / QL60 / Bulroc BR6 | ROS 64 | |||
| 8 " | 203mm-330mm | 8 "-13" | COP84 / DHD380 / SD8 | ROS 82 |
| QL80 / M80 / M85 | ROS 84 | |||
| 10 " | 254mm-380mm | 10 "-15" | SD10 | ROS 100 |
| NUMA100 | ||||
| 12 " | 305mm-508mm | 12 "-20" | DHD1120 / SD12 | ROS 120 |
| NUMA120 / NUMA125 | ||||
| Catatan: | ||||
| Metzke, utas Remet tersedia! | ||||
| Setiap ukuran khusus bit DTH akan tersedia berdasarkan permintaan. | ||||
Shank bisa tersedia:
1) Dia.64mm-70mm betis Bulroc BR1
2) Dia.70mm-95mm betis Halco MACH20, Bulroc BR2
3) Dia.Shank 90mm-102mm COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4) Dia.105mm-152mm betis COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5) Dia.135mm-165mm betis COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6) Dia.152mm-254mm betis COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7) Dia.203mm-330mm betis COP84, DHD380, SD8, QL80
8) Dia.254mm-380mm betis SD10, Numa100
9) Dia.305mm-508mm betis DHD1120, SD12, N120, N125
10) Dia.405mm-864mm betis SD15, SD18
11) VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200 ...
Kami juga menyediakan produk terkait palu DTH, sistem ODEX, sistem simetrik, sistem pengeboran blok geser, dll dan pipa pengeboran DTH untuk berbagai benang API REG, API IF, BECO, dll.
