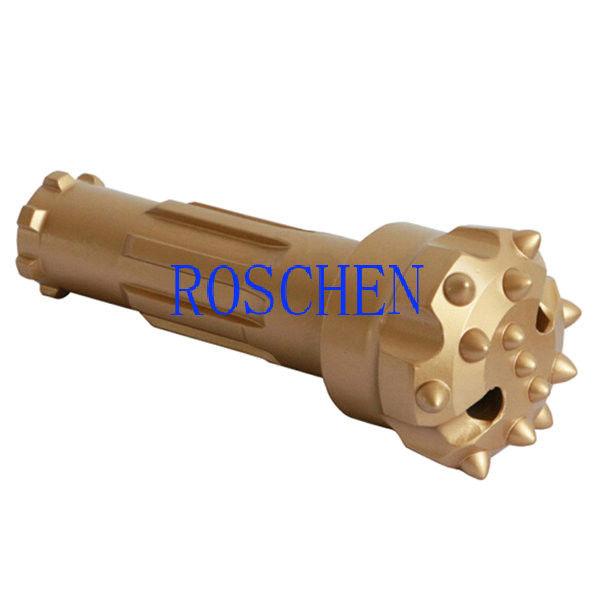

Hammer Lubang Bawah Tekanan Udara Tinggi / Rendah, Alat Pengeboran COP 32 90 Dth
Alat Pengeboran Dth Aplikasi
Dth Drilling Tools adalah kependekan dari Down The Hole hammer bit.Bit DTH kami menggunakan bahan baku berkualitas dan perlakuan panas untuk memproduksi.Karena fitur tahan aus dan ketangguhan benturan, bit tombol palu DTH kami banyak digunakan di pertambangan, pengeboran sumur air, dan pengeboran batu.
Pemilihan bentuk wajah Dth Drilling Tools:
1. Jatuhkan Pusat Bit
2. Wajah Cekung
3. Wajah Cembung
4. Wajah Pengukur Ganda
5. Bit Wajah Datar
Pemilihan bentuk tombol karbida:
1. Tombol Kubah / Bulat
2. Tombol Parabola / Semi-Balistik
3. Tombol Balistik
4. Tombol Tajam
5. Tombol Datar
Parameter Alat Pengeboran Dth Seri Cop32:
|
Untuk palu 3 " |
Bit Dia. |
Tidak. Lubang Udara |
Mengukur |
Depan |
Bobot |
|
|
Bit DTH betis |
mm |
inci |
Tombol |
Tombol |
(Kg) |
|
|
COP32 |
85 |
3 11/32 " |
2 |
6 × φ13 |
4 × φ12 |
4.2 |
|
90 |
3 1/2 " |
2 |
6 × φ14 |
4 × φ12 |
4.5 |
|
|
95 |
3 3/4 " |
2 |
6 × φ14 |
4 × φ13 |
4.7 |
|
|
100 |
3 7/8 " |
2 |
8 × φ12 |
6 × φ12 |
5 |
|
|
105 |
4 1/8 " |
2 |
8 × φ13 |
6 × φ12 |
5.3 |
|
|
BR3 |
85 |
3 11/32 " |
2 |
6 × φ13 |
4 × φ12 |
3.8 |
|
90 |
3 1/2 " |
2 |
6 × φ14 |
4 × φ12 |
4 |
|
|
95 |
3 3/4 " |
2 |
6 × φ14 |
4 × φ13 |
4.3 |
|
|
100 |
3 7/8 " |
2 |
8 × φ12 |
6 × φ12 |
4.8 |
|
|
105 |
4 1/8 " |
2 |
8 × φ13 |
6 × φ12 |
5.2 |
|
|
DHD3.5 / COP34 |
85 |
3 11/32 " |
2 |
6 × φ13 |
4 × φ12 |
4.2 |
|
90 |
3 1/2 " |
2 |
6 × φ14 |
4 × φ12 |
4.5 |
|
|
95 |
3 3/4 " |
2 |
6 × φ14 |
4 × φ13 |
4.8 |
|
|
100 |
3 7/8 " |
2 |
8 × φ12 |
6 × φ12 |
5 |
|
|
105 |
4 1/8 " |
2 |
8 × φ13 |
6 × φ12 |
5.5 |
|
|
QL30 |
85 |
3 11/32 " |
2 |
6 × φ13 |
4 × φ12 |
4.5 |
|
90 |
3 1/2 " |
2 |
6 × φ14 |
4 × φ12 |
4.7 |
|
|
95 |
3 3/4 " |
2 |
6 × φ14 |
4 × φ13 |
4.9 |
|
|
100 |
3 7/8 " |
2 |
8 × φ12 |
6 × φ12 |
5 |
|
|
105 |
4 1/8 " |
2 |
8 × φ13 |
6 × φ12 |
5.5 |
|
|
Spesifikasi ROSCHEN DTH Bits |
||||
|
Ukuran Palu |
Diameter bit |
Betis |
KODE ROSCHEN |
|
|
Metrik |
Inci |
|||
|
1 " |
64mm-70mm |
2 1/2 "-2 3/4" |
BR1 |
ROS 11 |
|
2 " |
70mm-95mm |
2 3/4 "-3 3/4" |
MACH20 / BR2 |
ROS 22 |
|
3 " |
90mm-102mm |
3 1/2 "-4" |
COP32 / COP34 / MACH303 |
ROS 32 |
|
M30 / DHD3.5 / BR3 |
ROS 34 |
|||
|
4 " |
105mm-152mm |
4 1/8 "-6" |
COP44 / DHD340 / MACH44 |
ROS 42 |
|
SD4 / M40 / QL40 |
ROS 44 |
|||
|
5 " |
133mm-165mm |
5 1/4 "-6 1/2" |
COP54 / DHD350R / MACH50 |
ROS 52 |
|
SD5 / M50 / QL50 / BR5 |
ROS 54 |
|||
|
6 " |
152mm-254mm |
4 1/8 "-10" |
COP64 / DHD360 / SD6 |
ROS 62 |
|
M60 / QL60 / Bulroc BR6 |
ROS 64 |
|||
|
8 " |
203mm-330mm |
8 "-13" |
COP84 / DHD380 / SD8 |
ROS 82 |
|
QL80 / M80 / M85 |
ROS 84 |
|||
|
10 " |
254mm-380mm |
10 "-15" |
SD10 |
ROS 100 |
|
NUMA100 |
||||
|
12 " |
305mm-508mm |
12 "-20" |
DHD1120 / SD12 |
ROS 120 |
|
NUMA120 / NUMA125 |
||||
|
Catatan: |
||||
|
Metzke, utas Remet tersedia! |
||||
|
Setiap ukuran khusus bit DTH akan tersedia berdasarkan permintaan. |
||||
Kami juga menyediakan produk terkait palu DTH, sistem ODEX, sistem simetrik, sistem pengeboran blok geser, dll dan pipa pengeboran DTH untuk berbagai benang API REG, API IF, BECO, dll.
