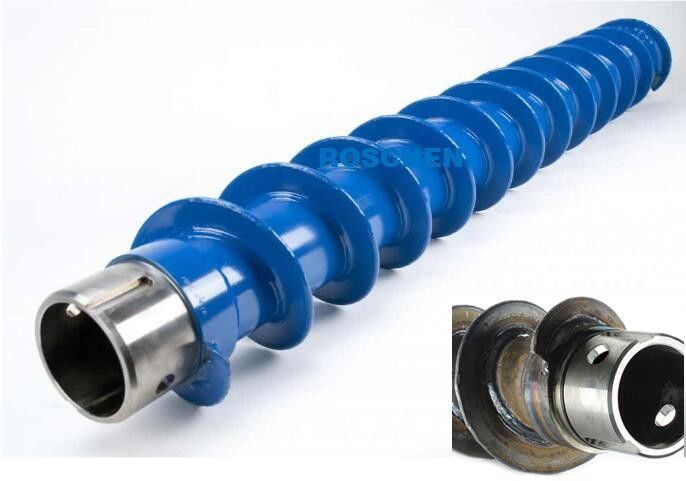

Hollow Stem Auger 10 1 / 4inch Triple Key Heavy Duty
Deskripsi
Hollow Stem Augers of All 10 1/4 ″ (ukuran 260mm) Triple Key Heavy Duty memiliki fitur desain terbang yang terus menerus, tebal 3/8 ″ (9.5mm) di tepi luar dengan pitch 7 1/2 ″ (191mm) .Sambungan alat tugas berat yang meruncing terbuat dari baja paduan 4142 dan memiliki sambungan baut ganda.
| Deskripsi | Bagian # | Lbs. | Kg. | |
| Bagian Auger | ||||
| 1 | 10 1/4 ″ (260mm) TK HD Hollow Stem Auger 10 1/4 ″ (260mm) ID x 14 1/2 ″ (362mm) OD x 5 ′ (1524mm) | A1014300HD | 265 | 120.2 |
| 2 | Tutup Drive TK HD 10 1/4 ″ (260mm) dengan Konektor Auger 3 1/4 ″ (83mm) | ADC101433HD | 84 | 38.1 |
| 2 | Tutup Drive TK HD 10 1/4 ″ (260mm) dengan Konektor Auger 4 1/4 ″ (108mm) | ADC101434HD | 86 | 39 |
| 3 | # 4 Mur & Baut untuk Adaptor Batang-ke-Cap | ANAB4 | 0.9 | 0.4 |
| 4 | 10 1/8 ″ (257mm) Konektor Bit Pilot (Kotak NW - 3 1/2 ″ Kotak Reg. API) | APBC1018NWB | 36 | 16.3 |
| 4 | 10 1/8 ″ (257mm) Konektor Bit Pilot (Kotak NWJ - 3 1/2 ″ Kotak Reg. API) | APBC1018NWJB | 36 | 16.3 |
| 5 | Adaptor Batang-ke-Cap - Pin NW | ARCANWP | 7 | 3.2 |
| 5 | Adaptor Batang-ke-Cap - Pin NWJ | ARCANWJP | 6 | 2.7 |
| 6 | Batang Bor NW - 5 ′ (1524mm) | ADR5NW | 31 | 14.1 |
| 6 | Batang Bor NWJ - 5 ′ (1524mm) | ADR5NWJ | 35 | 15.9 |
| Suku Cadang Perbaikan Auger | ||||
| 1A | 10 1/4 ″ (260mm) Sambungan Alat Pin TK HD | ATJ10143PHD | 32 | 14.1 |
| 1B | 10 1/4 ″ (260mm) Sambungan Alat Kotak TK HD | ATJ10143BHD | 31 | 14 |
| 7 | ALB4 Auger Lock Bolt | ALB4 | 0.4 | 0.2 |
| 8 | ABN3-M Auger Bushing Nut | ABN3-M | 0.2 | 0.1 |
| 9 | ADK3 Auger Drive Key | ADK3 | 0.3 | 0.1 |
| Auger Cutterheads dan Pilot Bits | ||||
| 10 | 10 1/4 ″ (260mm) TK HD Blade Cutterhead - 15 ″ (381mm) OD | ACH1014350HD | 52 | 23.6 |
| 10 | 10 1/4 ″ (260mm) TK HD Spade Cutterhead - 15 ″ (381mm) OD | ACH1014351HD | 48 | 21.8 |
| 10 | 10 1/4 ″ (260mm) TK HD Blade / Bullet Cutterhead - 15 ″ (381mm) OD | ACH1014360HD | 55 | 24.9 |
| 10 | 10 1/4 ″ (260mm) TK HD Spade / Bullet Cutterhead - 15 ″ (381mm) OD | ACH1014361HD | 54 | 24.5 |
| 10 | 10 1/4 ″ (260mm) TK HD Bullet Cutterhead - 15 ″ (381mm) OD | ACH1014370HD | 56 | 25.4 |
| 11 | 10 1/8 ″ (257mm) Bit Pilot Apex, 3 1/2 ″ API Reg.Pin | APB1018APX | 33 | 15 |
| 11 | 10 1/8 ″ (257mm) Bullet Pilot Bit, 3 1/2 ″ API Reg.Pin | APB1018BUL | 46 | 20.9 |
Informasi produk lebih lanjut, jangan ragu untuk menghubungi kami.
