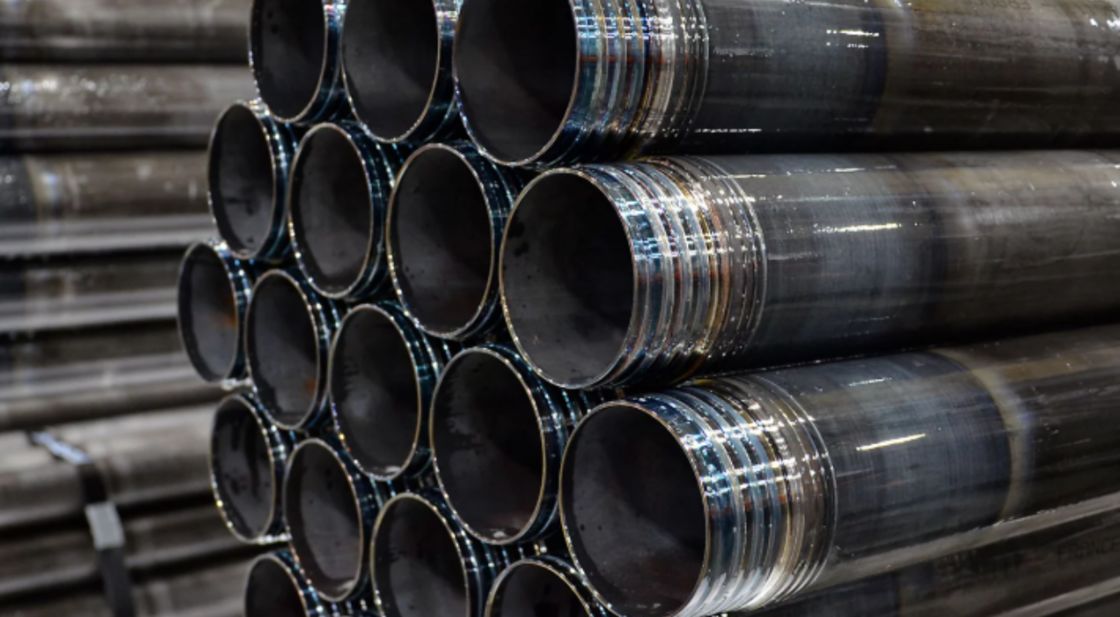

NQ Drill Rod Φ69.9X60.3X5 Wireline Drill Rod for diamond core drilling rig
  • NQ Drill Rod Φ69.9X60.3X5 Wireline Drill Rod for diamond core drilling rig
  • NQ Drill Rod Φ69.9X60.3X5 Wireline Drill Rod for diamond core drilling rig
  • NQ Drill Rod Φ69.9X60.3X5 Wireline Drill Rod for diamond core drilling rig
  • NQ Drill Rod Φ69.9X60.3X5 Wireline Drill Rod for diamond core drilling rig

NQ Drill Rod Φ69.9X60.3X5 Wireline Drill Rod for diamond core drilling rig

Place of Origin CHINA
Nama merek ROSCHEN
Model Number BQ NQ HQ PQ NQ3 HQ3 PQ3
Rincian produk
Menyoroti:

epiroc drill rods

,

sandvik drill rods

,

boart longyear drill rods

Syarat Pembayaran & Pengiriman
Minimum Order Quantity
1 pcs
Harga
Negotiate
Packaging Details
Steel bundle
Supply Ability
100000000 pcs
Deskripsi Produk



NQ Drill Rod Φ69.9X60.3X5 Wireline Drill Rod for diamond core drilling rig



NC(NQ) Drill Rod Φ69.9X60.3X5 Wireline Drill Rod for drilling rig

Our drill rods(NQ DRILL ROD) are all manufactured by CNC machines. They're made of high quality alloy steel with heat-treated. We also can produce various sizes of casing tubes. Our NC(NQ) drill pipe/drill rods got most praise from oversea market.





Specifications:

1. high quality alloy tube
2. thru-wall heat treated tube body
3. consistent concentricity, straightness
4. tapered threads





Product Advantages:



1. strong and ductile geological steel pipe;
2. solid quality and considerate service;
3. High cost-effective;

4. High grade Raw materials:


ROSCHEN only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.

Heat treatment control:
Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.

Thread opening process:
Accuracy of threads will determine the use effects and life time of drill rod and casings.
CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.



Additional thread treatment:
Surface of the threads will be cleaned to remove burr adhered after threads are opened.
Afterwards, the tread surface will be phosphated to improve surface conditions.





Wireline Drill Rod Specification :
Decription OD (mm) ID (mm) Weight (Kg/3m)
Rod, BQ 3.0 m Enhanced 55.6 46 18
Rod, NQ 3.0 m Enhanced 70.15 60 24
Rod, HQ 3.0 m Enhanced 89 77.8 35
Rod, PQ 3.0 m Enhanced 114.3 101.6 52.6









No Size Drill rod OD mm ID mm Thread type Heat treatment Raw material Designed hole depth
1 S56 53 44 China standard heat treatment the Thread 45MnMoB 1000m
2 S59 S75 55.5 71 46 61 China standard heat treatment the Thread 45MnMoB 1000m 1002m
3 S95 89 79 China standard heat treatment the Thread 45MnMoB 600m
4 S75A S95A   61 79 Metric heat treatment the Thread 45MnMoB 1500m 1300m
5 CBH CNH CNH (T) Both side were enhanced 44 61 61 Metric Heat treatment the whole pipe 30CrMnSiA XJY850 2500m 2300m 3000m
6 CHH   78 DCDMA standard heat treatment the Thread 30CrMnSiA 1800m
7 CSH 127 114.3 DCDMA standard heat treatment the Thread S135 3000m
8 BQ 55.6 46 DCDMA standard heat treatment the Thread 30CrMnSiA XJY850 2000m
9 NQ 70.5 60.5 DCDMA standard Heat treatment the whole 30CrMnSiA XJY850 2000m
10 HQ 89 77.8 DCDMA standard Heat treatment the whole 30CrMnSiA XJY850 1500m
11 PQ 114.3 103.2 DCDMA standard heat treatment the Thread 30CrMnSiA XJY850 800m
