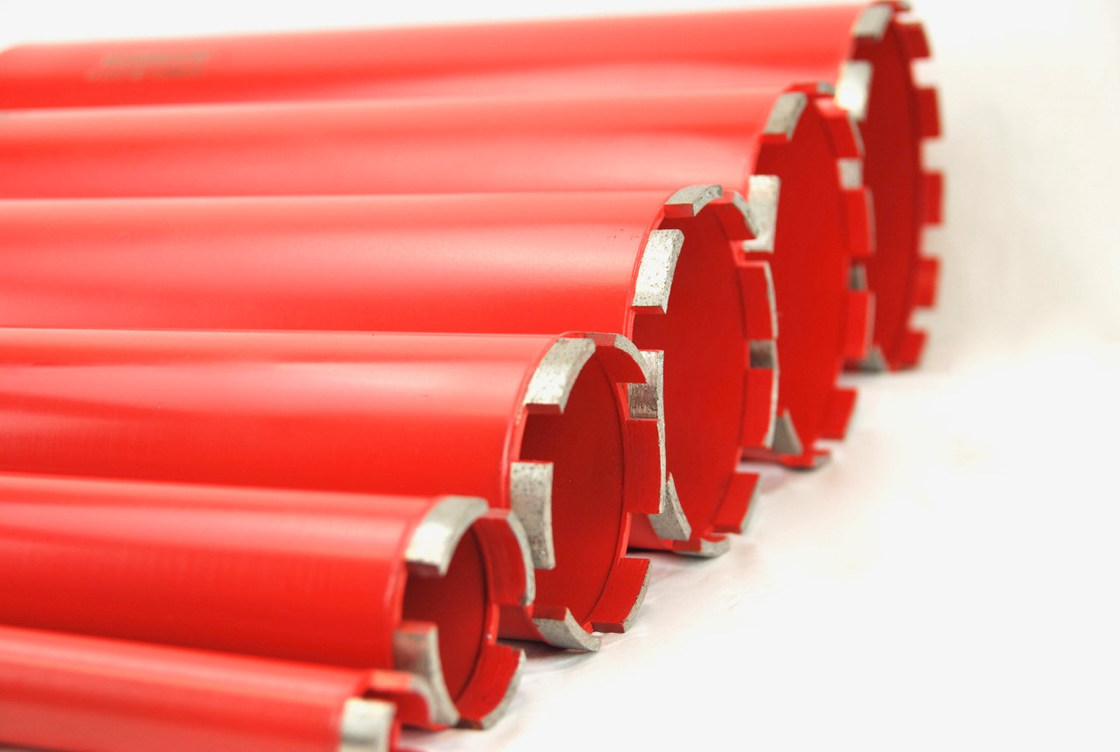

Diamond Core Drill Bit 1-1/4-7UNC
Diamond Core Drill Bit untuk pengeboran beton bertulang, batu bata, aspal.
Nomor Item: 001
OD 8-1000mm 1-1/4-7UNC Nut High Frequency Welding Diamond Core Drill Bit for Drilling Reinforced Concrete, brick, asphalt. Cocok untuk Portable & Fixed Driller Machine.penyesuaian diterima.
Deskripsi
*Diameter luar: Φ8mm~Φ1000mm
*Tinggi segmen:10mm
* Panjang kerja:245-400mm
* Total panjang: 300-450mm
* Pabrik langsung, kustomisasi diterima.
* Bahan baku: Tabung Baja Presisi & Segmen Berlian
* Sekrup:1-1/4-7,1-1/4-3,1/2BSP,M22dan lainnya
*Shank Tipe:Hexgon
*Aplikasi: Beton Lapisan,Brick,Asphalt dengan Air.
* Cocok untuk:Portable & Fixed Driller
* Proses Pengelasan: Frekuensi Tinggi & Laser
* Tinggi Segmen rapi, Segmen kekuatan tinggi, tajam dan stabil.
| Spesifikasi BIT DIAMOND CORE |
| Diameter luar |
Inci |
Diameter luar |
Inci |
Diameter luar |
Inci |
| Φ8 mm |
1/3 " |
Φ51mm |
2 " |
Φ168mm |
6-3/5" |
| Φ10 mm |
2/5 " |
Φ56 mm |
2-1/5" |
Φ180 mm |
7" |
| Φ12 mm |
1/2 " |
Φ63mm |
2-1/2 " |
Φ202mm |
8" |
| Φ14 mm |
5/9" |
Φ66 mm |
2-3/5" |
Φ220 mm |
8-7/10" |
| Φ16 mm |
5/8" |
Φ71mm |
2-4/5" |
Φ245mm |
9-3/5" |
| Φ18 mm |
5/7" |
Φ76 mm |
3 " |
Φ300 mm |
12" |
| Φ20 mm |
4/5" |
Φ83mm |
3-1/4 " |
Φ350 mm |
14" |
| Φ22 mm |
7/8" |
Φ89mm |
3 1/2 " |
Φ400 mm |
15 1/2 " |
| Φ24 mm |
15/16 " |
Φ102mm |
4" |
Φ450 mm |
17-7/10" |
| Φ26 mm |
1-1/27" |
Φ108mm |
4-1/4" |
Φ500 mm |
19-7/10" |
| Φ28 mm |
1-1/9" |
Φ110 mm |
4-1/3" |
Φ550 mm |
21-7/10" |
| Φ30 mm |
1-3/16" |
Φ120 mm |
4-5/7" |
Φ600 mm |
23-3/5" |
| Φ32 mm |
1-1/4 " |
Φ127 mm |
5" |
Φ650 mm |
25-3/5 " |
| Φ38 mm |
1-1/2 " |
Φ132mm |
5-1/5 " |
Φ700 mm |
27-3/5" |
| Φ40 mm |
1-3/5" |
Φ152mm |
6" |
Φ800 mm |
31-1/2 " |
| Φ44mm |
1-7/10" |
Φ159mm |
6-3/8" |
Φ1000 mm |
39" |
