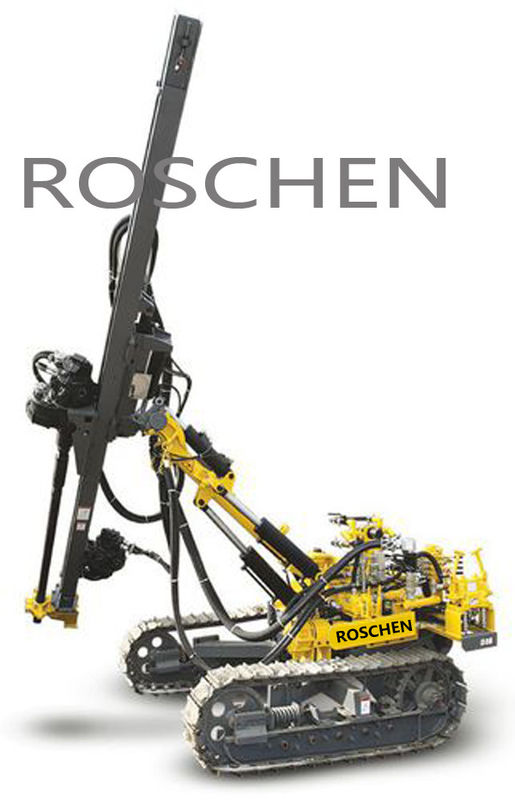

Multifunctional Drilling Rig Borehole Drilling Machine Full Hydraulic For Rotary Drilling

1 sets
MOQ
Negotiate
harga
Multifunctional Drilling Rig Borehole Drilling Machine Full Hydraulic For Rotary Drilling
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Name: Full Hydraulic Multifunctional Drilling Rig
Drills: Rotary Drilling
Drilling: Percussion Drilling
Hammer: Down the hole hammer, DTH Hammer
Type: Top Hammer Drilling
Model: Down The Hole Drilling, DTH Drilling
Products: Hydraulic Crawler Drill Rig
Functions: Multi-function drilling rig / crawler / tophammer / hydraulic
Cahaya Tinggi:

rig pengeboran panas bumi

,

mesin pengeboran sumur

Informasi dasar
Tempat asal: Germany, China
Nama merek: ROSCHEN
Sertifikasi: ISO
Nomor model: RS-1800A, RS-1800B
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Bundle
Menyediakan kemampuan: 500-1000 sets
Deskripsi Produk

Full Hydraulic Multifunctional Drilling Rig RS-1800 for Rotary Drilling




RS-1800 Hydraulic Crawler Drill Rig


The RS-1800 full hydraulic crawler multifunctional drilling rigs are configured with rotation-percussion rotary head or large torque rotation type rotary head as alternative,and equipped with down-the-hole hammer, which is designed for various hole forming operation. It is suitable for different soil condition, for example gravel layer,hard rock,aquifer,clay,sand flow etc. This rig is mainly used for rotation percussion drilling and normal rotation drilling in the project of bolt supporting, slope supporting,grouting stabilization, precipitation hole and underground micro piles, etc.


Main Characteristics And Applications:



No Features of Full Hydraulic Multifunctional Crawler Drilling Rig
1 Key part-Rotary head---Highly effective rotation-percussion rotary head
2 Adopts HB50A or HB45A rotary head produced by ThyssenKrupp AG which is a world famous professional of rock drill. This can assure key parts of the machine are stable and reliable. Self-developed large torque rotation type rotary head, with large torque and high efficiency, rotation type rotary head driven by single motor is optional for RS-1800, which is applicable for different working conditions.
3 Multiple pumps and hydraulic system make the machine perdurable and stable with easy operation, lower fault, clear oil circle.
4 The engine matchs hydraulic oil pump perfectly, which can reduce the power loss,make the engine lowest consumption, in order to get energy-saving and effectively lengthen the service life of the engine.
5 Multi-functionalization





The rig can be equipped with different type rotary heads and hydraulic percussion drifter to achieve various hole projects.The rig meets varying drilling technology from performance and structure,etc.



Technical Parameters:

Specification Unit Item
Power Diesel Engine Model   RS-1800A RS-1800B
Rated Output & Speed kW/rpm
Hydraulic sys.Pressure Mpa
Hydraulic sys.Flow L/min
Rotary Head Work Mode   Rotation,percussion Rotation
Type   HB50A XW400
Max.Torque N.m 13000 40000
Max.Rotating Speeding r/min 80 44
Percussion Frequency min-1 1200 1900 2400 /
Percussion Energy Nm 835 535 420
Feed Mechanism Feeding Force kN 57
Extraction Force kN 85
Max. Feeding Speed m/min 56
Max. Pipe Extract Speed m/min 39.5
Feed Stroke mm 4100
Traveling Mechanism Grade Ability   25
Traveling Speed km/h 4.1
Winch Capacity N 20000
Clamp Diameter mm ɸ65-225 ɸ65-323
Clamp Force kN 157
Slide Stroke of Mast mm 1000
Total weight kg 17000
Overall Dimension(LxWxH) mm 8350*2260*2900
