Geotechnical Drilling Rig Machine Atlas Copco Underground Drill Rig Used for Underground Drilling
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Model: Underground drill rig
Name: Underground drill rig
Equipment: Hydraulic Drilling Machine
Angle: 360° Rotation
Functions: Higher Performance Drilling System
Tools: Hydraulic Rock Drill
Use: Mining and Construction
Usage: Surface Drills
Type: Rock Drill Rigs
Machine: DD210L UNDERGROUND DRILL RIG
Cahaya Tinggi:

rig pengeboran panas bumi

,

mesin pengeboran sumur

Informasi dasar
Tempat asal: Sweden
Nama merek: ROSCHEN
Sertifikasi: ISO
Nomor model: DD210L
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Bundles
Menyediakan kemampuan: 1000 sets
Deskripsi Produk

Geotechnical Drilling Equipment Atlas Copco Underground Drill Rig Used for Underground Drilling

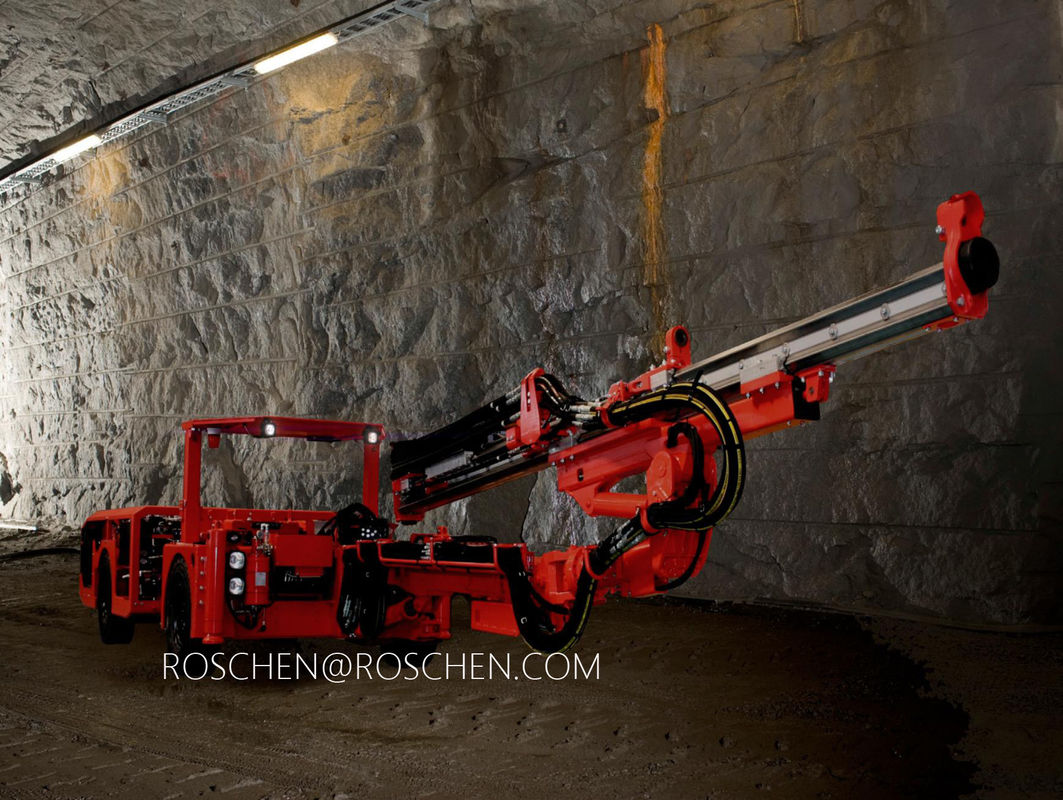

Roschen Drill Rig is a low profile single boom electro hydraulic drilling machine designed to work in excavations with headroom as low as 1.7 m.


The robust universal boom has a large optimum shaped coverage, 360° rotation and full automatic parallelism for fast and easy face drilling. The boom can also be used for crosscutting, the hose layout is specifically designed to maximize protection in low headings. The exceptional «V» shape layout is designed for good visibility and balance, this and the powerful four-wheeldrive articulated carrier ensure fast and safe maneuvering even in low headroom conditions.


The high performance drilling system allows high drilling performance with good drill steel economy and high machine reliability.


The operator environment and added automatic functions allow the operator to concentrate on safe, fast and accurate drilling.


All the service points are well protected but easy to access.


Technical Parameters:


HYDRAULIC ROCK DRILL
Rock drill HLX5
Percussion Power 20 kW
Percussion Pressure Max. 220 bar
Percussion rate 67 Hz
Rotation Speed Max. 250 rpm (with OMS80)
Rotation torque 400 Nm (with OMS80)
Hole size (drifting 43 - 64 mm 1.7 - 2.5 in
Hole size (cut hole) 76 -127 mm 2.9 - 5 in
Recommended Rod   T38 - R32
    T38 - alpha 330
    T38 - R35
Shank adapter   T38 (male)
Weight 210 kg 462.9 lb
Length 955 mm 37.6 in
Profile height 87 mm 3.4 in
Shank lubrication device Air / oil mist, KVL10-1
Shank lubrication compressor CT10, 1m3/min (7bar)
Air consumption 250 - 350 l/min
Oil consumption 180 - 250 g/h



BOOM
Boom B26XL-F
Boom* B26S-NV, B26XL-NV
Parallel coverage 35 m2 376,74 ft2
Parallelism Automatic hydraulic
Boom extension 1700 mm 66.92 in
Boom weight, net 2100 kg 4630 lb
Roll-over angle 360º




FEED
Feed TF500-12
Feed Force Max. 25 kN
Feed Extension 1600 mm 5.24 ft
TF Feed lengths* 4256, 4864 mm 14, 16 ft
Telescopic feed* TFX6/12. 8/14





FEED DIMENSIONS
Feed TF500 Total Length Hole Length Rod Length Net Weight
12 ft 5270 mm 3440 mm 3700 mm 500 kg
  207.4 in 135.4 in 145.6 in 1102 lb
14 ft 5880 mm 4050 mm 4305 mm 530 kg
  231.4 in 159.4 in 169.4 in 1168 lb
16 ft 6490 mm 4660 mm 4915 mm 560 kg
  255.5 in 183.4 in 193.5 in 1234 lb
