Atlas Copco Down The Hole Hammer for 200 m Deep Water Well Down The Hole Drilling

1-5 sets
MOQ
Negotiate
harga
Atlas Copco Down The Hole Hammer for 200 m Deep Water Well Down The Hole Drilling
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Type: DTH Drilling
Name: Atlas Copco DTH Hammer
Products: DTH Hammer
Usage: Water Well Drilling
Model: DHD340, DHD360, DHD380, COP34, COP44, COP54, COP64
Applications: Stone Quarry, Water Well, Mineral Exploration Drilling
Cahaya Tinggi:

Alat lubang bawah

,

ke dalam lubang palu

Informasi dasar
Nama merek: ROSCHEN
Sertifikasi: ISO
Nomor model: QL120
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Poly wooden box
Menyediakan kemampuan: 1000 sets
Deskripsi Produk

Roschen DTH Hammer can replace of Atlas Copco's Hammer basis on the quality.


A QUANTUM LEAP TO WATER

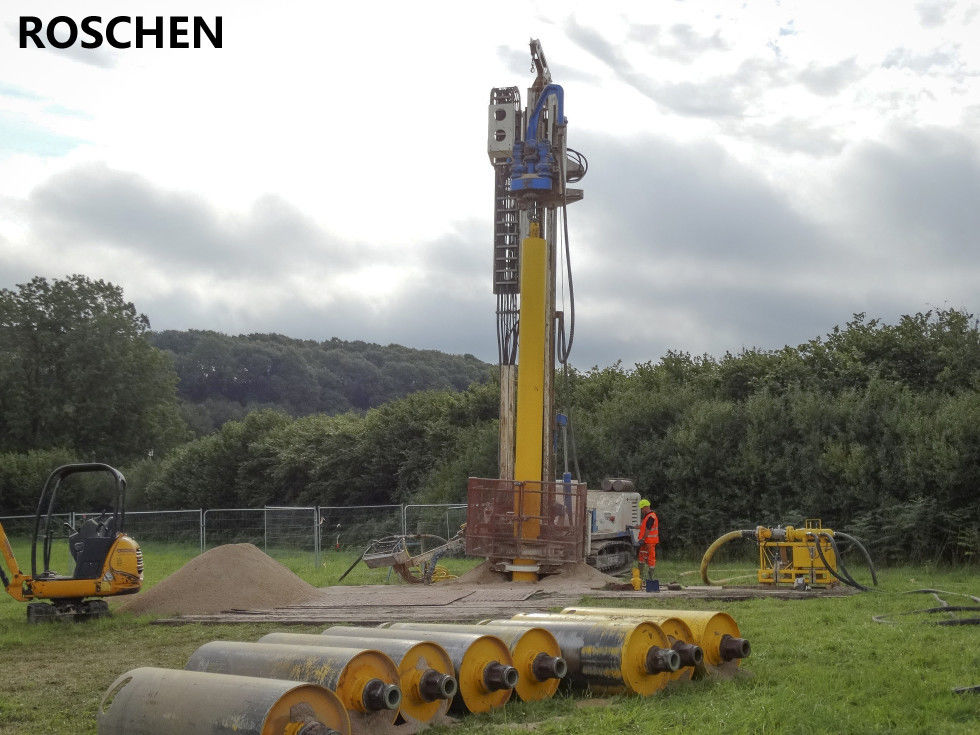

An Roschen QL120 Quantum Leap hammer has successfully been used to drill a 200 m deep water well in the UK.



The well hole was drilled for an international drinks company in Gloucestershire by drilling contractor Apex Drilling Services Ltd. Using the Roschen related QL 120 hammer, the hole was drilled through a limestone sequence, progressing to the Tintern Sandstone horizon.


“The phases involved drilling a 625 mm hole to a depth of 25 m. This was followed by the installation of a 510 mm casing that was grouted in to seal the borehole and avoid ground contamination from entering the well. Drilling continued to 220 m at 406 mm,” explains Mike James, Apex Drilling Manager.



James continues: " We removed the shroud for the second phase and replaced the 610 mm button bit with a 406 mm button bit. We easily achieved our target and maintained good flushing."


QL200 General Specifications:



Description Standard Special
English Metric English Metric
Standard drill pipe connection (see options) 8-5/8 API reg pin 8-5/8 API reg pin
Outside diameter (inch & mm) 15.6 396 15.6 396
Length w/o bit shoulder to shoulder (inch & mm) 65.8 1,670 72.1 1,831
Length with bit extended (inch & mm) 75.3 1,911 83.5 2,120
Length with bit retracted (inch & mm) 73.3 1,861 81.5 2,069
Weight w/o bit (lb & kg) 2,579 1,172 2,983 1,356
Backhead across flats (inch) Special Wrench/Tongs Required
Minimum bit size (inch & mm) 17.5 444 28 711
Maximum bit size (inch & mm) 26 660 36 914
Bore (inch & mm) 12.25 311 12.25 311
Piston weight (lb & kg) 610 277 610 277
Stroke (inch & mm) 4 102 4 102
Maximum pressure differential (psig & bar) 250 17 250 17
Maximum choke diameter (inch & mm) 0.88 22.3 0.88 22.3
Make-up torque (ft-lb. & N-m) 18,000 24,372 18,000 24,372
Shank style QL200 QL200




Air Consumption:


Description Standard Special
100 psi/6,9 bar (scfm & l/s) 1,584 747 1,584 747
blows per minute 701 701
150 psi/10,3 bar (scfm & l/s) 2,470 1,165 2,470 1,165
blows per minute 807 807
200 psi/13,8 bar (scfm & l/s) 3,389 1,599 3,389 1,599
blows per minute 923 923
250 psi/17,2 bar (scfm & l/s) 4,341 2,048 4,341 2,048
blows per minute 1,049 1,049
300 psi/20,7 bar (scfm & l/s) 5,324 2,511 5,324 2,511
blows per minute 1,185 1,185
350 psi/24,1 bar (scfm & l/s) 6,340 2,991 6,340 2,991
blows per minute 1,331 1,331
Above specifications/ratings are based on initial factory setting.
