H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm

1 sets
MOQ
Negotiate
harga
H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Sertifikasi: API, API 5DP, ISO9001, CE
Nomor model: Integral Drill Rod
Shank Type: Hex22*108/hex25*159
Condition: New
Type: Drill Pipe, Integral Drill Rod
Processing Type: Forging
Usage: Tunneling, Mining,quarrying Rock Drilling
Material: Tungsten Carbide And Tungsten Carbide, High Manganese Steel
Application: Quarry Or Mining Or Well Drilling
After-sales Service: 7X24hours Available
Color: As Requirement
Package: Carton And Wooden Case
Length: 400mm-6000mm
Diameter: H35 D32 D38 D46 D52
Product name: MF Rod
Cahaya Tinggi:

Berlian inti pengeboran bit

,

Bor Beton Core

Informasi dasar
Tempat asal: China
Nama merek: ROSCHEN
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Carton And Wooden Case
Menyediakan kemampuan: 1500 sets per month
Deskripsi Produk

H19 Hex Chisel Bit Integral Rock Drill Rods 19*108mm Stable And Reliable


H19 Hexagonal Chisel Bit Integral Rock Drill Rods 19mm 108mm Stable And Reliable


Integral Drill Steel is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Regarding Integral drill steels, the quality of a steel material and a tungsten carbide is very important to get good drilling performance.


According to different application, different lengths are available from 400mm to 5000mm usually.

Shank size:hex19/ 22/ 25mm including plug hole rods

Diameter: 28~41 mm
Length: 400~5000mm


It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure.


Application:
• Widely used in drifting, tunneling, benching, and long hole drilling
• Blast Hole Drilling
• Africa Copper Mining
• Zambia copper belt province, Africa
• Chile Copper Mining


Mainly Products:

Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51


Specifications:


Shank Style Length Head Diameter
Mm foot/inch Mm Inch
Hex19 × 108mmWe can produce as your request of carbide size, different length of drill rods. 400 ~ 4,000 1' 4" ~ 13' 1" 23 ~ 35 27/32 ~ 1 3/8
Hex22 × 108mm 400 ~ 9,600 1' 4" ~ 31' 6" 26 ~ 41 1 1/32 ~ 1 39/64
Hex25 × 108mm 600 ~ 6,400 1' 11 5/8" ~ 21' 33 ~ 45 1 19/64 ~ 1 25/32
Hex25 ×159mm 800 ~ 6,400 2' 7" ~ 21' 35 ~ 42 1 3/8 ~ 1 21/32

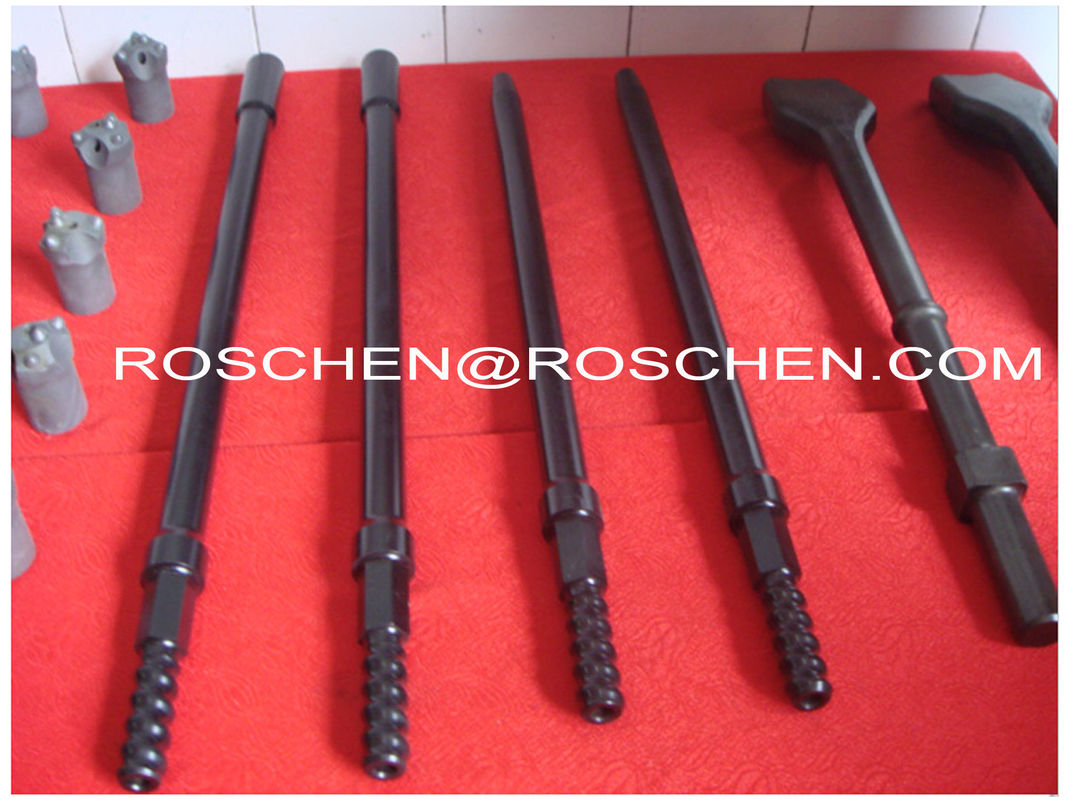

H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm 0
H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm 1


H19 Hexagonal Chisel Bit Integral Top Hammer Drilling , Rock Drill Rods 19mm 108mm 2









FAQ



The information about dth drill bit you may like to know before order:


1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight


2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment


3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.


4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.


5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time


6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality.
