Secoroc QLX 50/55 Down the Hole Hammer with High Performance DTH Hammer for America
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Model: Down The Hole Hammer, DTH Hammer
Name: Down The hole Hammer Drilling
Drilling: Down The hole Drilling, DTH Drilling
Use: Water Well Drilling
Hammer: QL40 DTH Hammer
Model No.: Quantum Leap Down-the-hole Equipment
Series: Secoroc Down-the-hole Equipment
Series No.: Quantum Leap DTH Hammer
Hammer No.: QL50 DTH Hammer
Type: Quantum Leap Down The Hole Hammer
Applications: Foundation Pile Drilling
Machine: DTH Hammer drilling machines
Origin: China down the hole hammer drilling
sales: Down hole hammer for sale
Item No: rev drill down hole hammer
Hammer bits: Down the hole hammer bits
Supplier: China dth hammer
Factory: Puma dth hammers factory
Subject: Bulroc dth hammers
QL Series: Quantum Leap DTH Button Bits
Numa Hammer: Numa DTH Hammer
Cahaya Tinggi:

DTH alat pengeboran

,

Alat lubang bawah

Informasi dasar
Tempat asal: Germany,China
Nama merek: ROSCHEN
Sertifikasi: ISO
Nomor model: QL50 55
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Wooden box
Menyediakan kemampuan: 1200 Per month
Deskripsi Produk

Secoroc QLX 50/55 Down the Hole Hammer



Secoroc QLX 50/55 Down the Hole Hammer with High Performance DTH Hammer for America Down The Hole Drilling





Secoroc QLX 50/55 Down the HolHammer with High Performance DTH Hammer for America Down The Hole Drilling


QLX 50/55 - The Latest in High Performance DTH Hammers


Secoroc QLX 50/55 hammer at Roschen and Atlas Copco Secoroc, we keep looking for new ways of improving our customers' productivity. That’s why we have taken the best of the QL design, thrown in a few new ideas, and created the Secoroc QLX 50 and QLX 55 down the hole hammers.


QLX 50 and QLX 55 are primarily deep hole hammers, but have also proven to be high performance hammers for other applications.


These new 5" hammers offer 20% more all-around performance than the QL hammers and better water-logged deep hole drilling capacity than its predecessor, the TD 50 hammer. They are benchmarks with the highest rate of penetration (ROP) and reliability that are a cut above the rest, thanks to solutions such as the new e-kit making servicing easier and quicker to execute. The QLX 55 has thicker heavy duty (HD) casing for longer service life when drilling in abrasive rock formations.


The QLX 50 and QLX 55 have been stringently field tested in the USA and Sweden prior to launch. They have proven outstanding in water well, geothermal drilling, and other applications thanks to the Air Select feature that enables the QLX to match a variety of air packages while utilizing the excess air for hammer power.


Secoroc QLX 50/55 Down the Hole Hammer with High Performance DTH Hammer for America 0

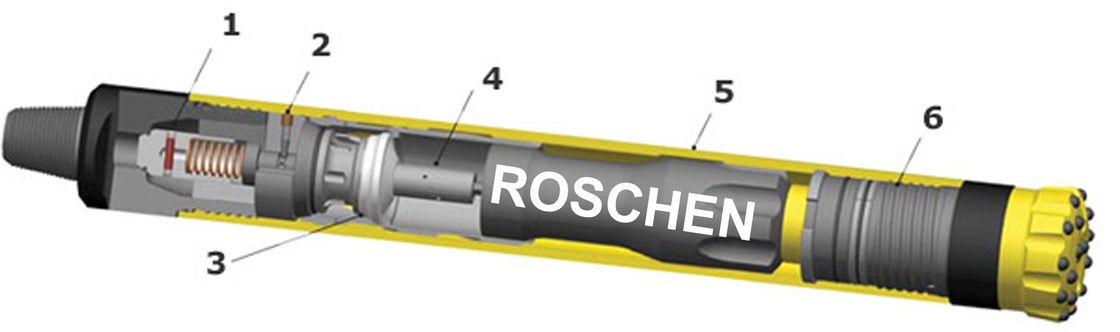

QLX 50/55 DTH Hammer Specifications
1 Field-proven check system.
2 Robust detent system.
3 Proven Quantum Leap air cycle provides "power" for 80% of piston down stroke.
4 Air Select system allows selectable timing to maximize hammer performance to match air package.
5 Reversible casing to maximize wear.
6 Industry leading QL style shank.





General Specifications QLX 50 QLX 55   Air Consumption and Impact Frequency (with Air select on default setting 2)
Connection thread 3 1/2" API Reg Pin Air Pressure scfm bpm**
Bit shank QL 50 100 psi 155 1305
Outside diameter 4.8" 5.08" 150 psi 257 1426
Length w/o bit shoulder to shoulder 41.76" 41.76" 200 psi 374 1547
Weight w/o bit 153.0 lbs. 178.0 lbs. 250 psi 508 1668
Backhead across flats 3.7" / 4" 3.7" / 4" 300 psi 657 1788
Recommended minimum bit size 5.25" 5.5" 350 psi 822 1909
Recommended maximum bit size 6" 6" 400 psi* 961 2029
Bore 3.95" 3.95" 450 psi* 1109 2114
Piston weight 33.0 lbs. 33.0 lbs. 500 psi* 1258 2270
Stroke 3.75" 3.75" *Estimated value
Maximum pressure differential 500 psig 500 psig **Blows per minute
Make-up torque 5000 ft-lb. 5000 ft-lb.



Operational Specifications
Feed Force 1500 - 2000 lbs.
Rotation Speed 50 - 80 rpm




Secoroc QLX 50/55 Down the Hole Hammer with High Performance DTH Hammer for America 1





Ref. Part   Ref. Part
1 Exhaust tube 13 O-ring*
2 Chuck for QLX 50 / for QLX 55 14 Compression cone
3 Bit retaining ring assembly 15 Air distributor
4 O-ring* (bit retainer) 16 Plug, guide flow select
5 O-ring* (bit bearing) 17 Detent assembly
6 Bit bearing 17a Plunger*
7 Lock ring 17b Plunger spring*
8 Casing for QLX 50 / for QLX 55 17c Plunger retainer plug*
9 Piston 18 Check valve spring
10 Seal - piston tail bore 19 Check valve
11 Inner cylinder 20 O-ring* (check valve)
12 Valve assembly 21 Choke plug solid
12a O-ring* 22 O-ring*
12b O-ring* 23 Backhead assembly for QLX 50 / for QLX 55
*Not sold separately
**Item 21 - Choke plug 1/4" and choke plug 1/8" may be used to bypass more air to reduce pressure and/or increase bailing velocity.





Wear Limits   Hammers and Kits
Chuck Min. length 1.85" QLX 50 Complete, 3 1/2" API Reg Pin
Casing reverse QLX 50 Min. OD 4.65" QLX 55 Complete, 3 1/2" API Reg Pin
Casing reverse QLX 55 Min. OD 4.84" E-kit QLX 50, 3 1/2" API Reg Pin
Casing discard QLX 50/55 Min. OD 4.38" E-kit QLX 55, 3 1/2" API Reg Pin
Bit bearing Max. ID 3.019" O-ring kit includes items 2x4, 1x5, 1x22
Piston/Casing clearance Max. 0.01"
Piston/Inner cylinder clearance Max. 0.009" Sustainability kit includes O-ring kit and items 10, 12, 2x13, 20
Exhaust tube protrusion Max. 2.07"



ROSCHEN DTH Bits Specifications
Hammer Size Bits diameter Shank ROSCHEN CODE
Metric Inch
1" 64mm-70mm 2 1/2"-2 3/4" BR1 ROS 11
2" 70mm-95mm 2 3/4"-3 3/4" MACH20/BR2 ROS 22
3" 90mm-102mm 3 1/2"-4" COP32/COP34/MACH303 ROS 32
M30/DHD3.5/BR3 ROS 34
4" 105mm-152mm 4 1/8"-6" COP44/DHD340/MACH44 ROS 42
SD4/M40/QL40 ROS 44
5" 133mm-165mm 5 1/4"-6 1/2" COP54/DHD350R/MACH50 ROS 52
SD5/M50/QL50/BR5 ROS 54
6" 152mm-254mm 4 1/8"-10" COP64/DHD360/SD6 ROS 62
M60/QL60/Bulroc BR6 ROS 64
8" 203mm-330mm 8"-13" COP84/DHD380/SD8 ROS 82
QL80/M80/M85 ROS 84
10" 254mm-380mm 10"-15" SD10 ROS 100
NUMA100
12" 305mm-508mm 12"-20" DHD1120/SD12 ROS 120
NUMA120/NUMA125
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!





ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!





FAQ



The information about dth drill bit you may like to know before order:


1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight


2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment


3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.


4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.


5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time


6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality.
